Cable for connecting music equipment speakers

Cable specially indicated in domestic installations for connecting music equipment speakers and for broadcasting music signals throughout the home.

PARALLEL AUDIO CABLE cable performance
Electrical performance

These cables have no assigned voltage and cannot be used in electric power transport circuits.

Standard

UNE 211030

Approvals

RoHS

AENOR
Thermal performance

Maximum conductor temperature: 70ºC.

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: -15ºC (static with protection).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Mechanical performance

Minimum bending radius:  x5 cable diameter.

Applications

Speaker connection.

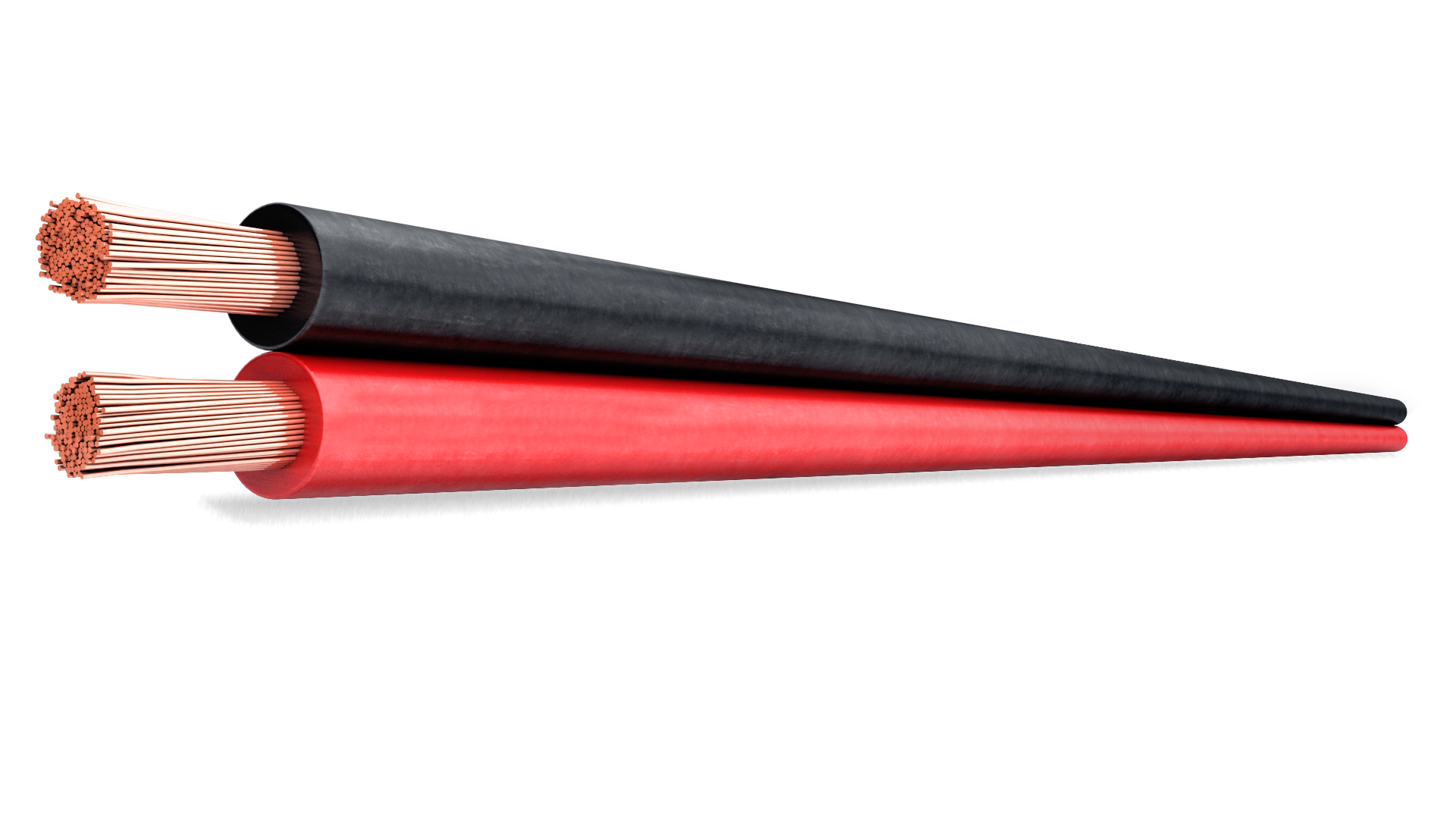

PARALLEL AUDIO CABLE cable design
Conductor

Electrolytic annealed copper, class 5 (flexible) according to EN 60228 and IEC 60228 (bicolour) or oxygen free electrolytic copper conductor (OFC).

Insulation

Rubber (type EPR)

PVC TI2 according to EN 50363-3. Red and Black. The standard identification of insulated conductors is the following:

Bicolor audio cable Red - Black.
Audio cable OFC Transparent - Transparent

Speaker connection

AENOR & RoHS

Minimum bending radius: x5 cable diameter

Available in 100m rolls

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1

THERMAL PERFORMANCE

✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -15ºC

MECHANICAL PERFORMANCE

✔ Minimum bending radius: x5 cable diameter.

APPROVALS

✔ AENOR
✔ RoHS

BASED ON

✔ UNE 211030

Technology


1. Conductor
Electrolytic annealed copper, class 5 (flexible) according to EN 60228 and IEC 60228 (bicolour) or oxygen free electrolytic copper conductor (OFC).

2. Insulation
Rubber (type EPR)

PVC TI2 based on EN 50363-3. Red and Black. The standard identification of insulated conductors is the following:

Bicolor audio cable Red – Black.
Audio cable OFC Transparent – Transparent
