TOXFREE PLUS 331 ZH RZ1-K (AS+)_XLPE/PVC POWER CABLES_Products

LSHF and fire resistant power cable, for emergency circuits.

TOXFREE Plus 331 ZH RZ1-K (AS+) is a fire resistant cable, specially designed to ensure the power supply to emergency circuits in the event of fire. During a fire you need critical circuits to work for life safety (signaling lights, fume extractors, acustic alarms, water pumps, etc) and a secure plant shutdown. For this reason, its use is highly recommended in public places such as: hospitals, tunnels, offices, production plants, laboratories, hotels, etc.

TOXFREE PLUS 331 ZH RZ1-K (AS+) cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60502-1

Approvals

CE/ RoHS

CPR Construction Products Regulations B2ca-s1a, d1, a1 (according to cross-section) or Cca-s1b,d1,a1 (according to cross-section).

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: -0ºC.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

UV Resistant according to EN 50618.

Water performance

Water resistance: AD5 Jets.

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3, IEC 60332-3 and EN 50399.

Fire resistant: (PH120) mínimum 120 minutes at 840ºC: Based on EN 50200 and IEC 60331-2 for Ø cable ≤ 20 mm.

Based on EN 50362 and IEC 60331-1 for Ø cable > 20 mm. 180’ at 950ºC (cat C) category C,W & Z based on BS6387.

Fire resistant 180’ at 950ºC (cat C) category C,W & Z based on BS6387 (300/500V).

LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

Emergency circuits

Public places.

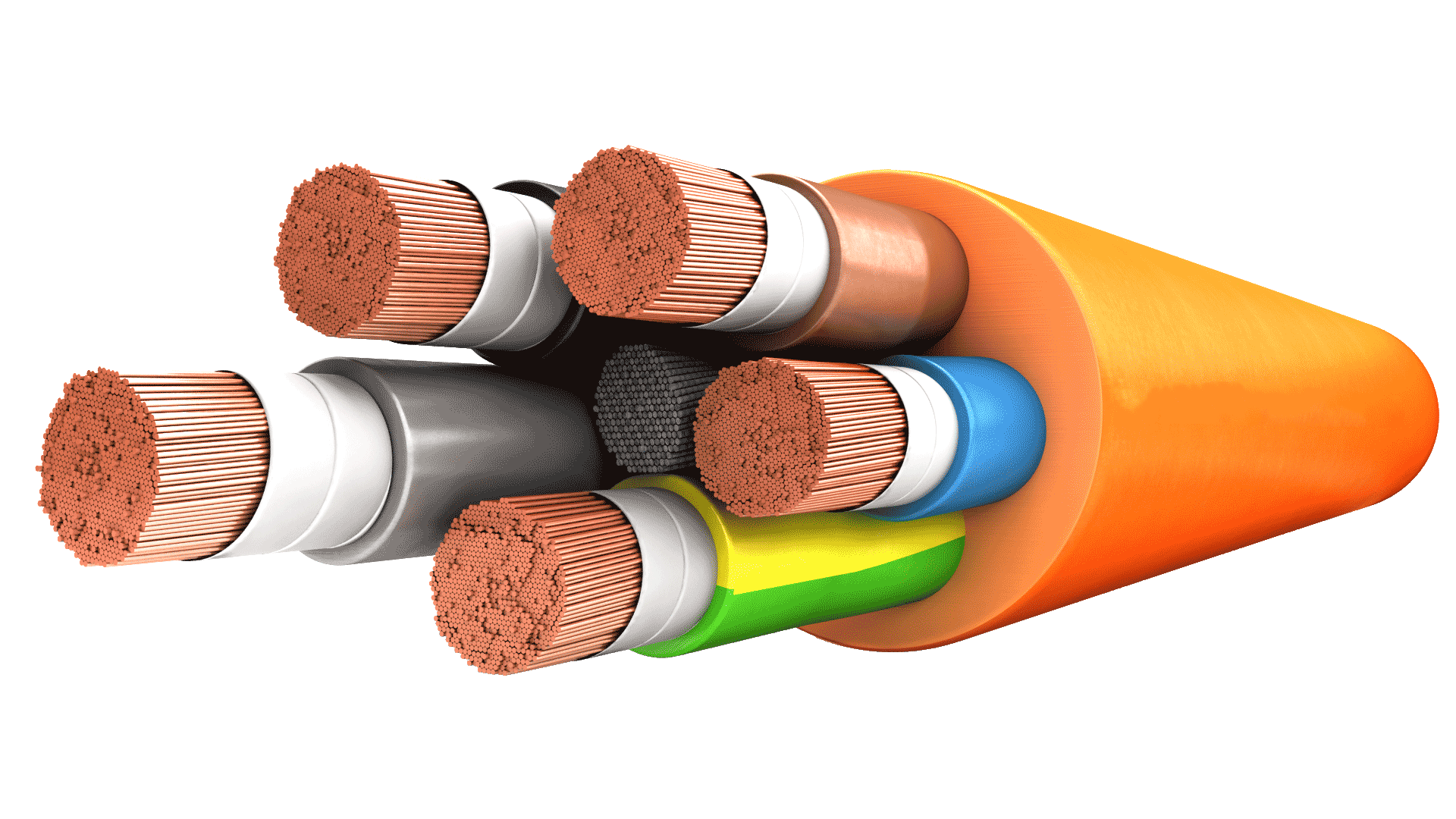

TOXFREE PLUS 331 ZH RZ1-K (AS+) cable design

Conductor

Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Mica tape + Cross-linked polyethylene type DIX-3 according to HD 603.

The standard identification of insulated conductors according to HD 308 is the following:

1 x Natural

2x Blue + Brown

3 x Blue + Brown + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Green/yellow + Blue

Outer sheath

Low Smoke Halogen Free (LSHF) polyolefin. Orange color, non-toxic, fire retardant and fire resistant.

LOW VOLTAGE 0,6/1kV

Flame non-propagation based on EN 60332-1 and IEC 60332-1

Maximum service temperature: 90ºC.

Industrial use / Public places / Emergency circuits

IEC 60502-1

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Fire resistant 180’ at 950ºC (cat C) category C,W & Z based on BS6387 (300/500V).
✔ Fire resistant: (PH120) mínimum 120 minutes at 840 ºC: Based on EN 50200 and IEC 60331-2 for Ø cable < 20> 20 mm. 180’ at 950ºC (cat C) category C,W & Z based on BS6387.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
✔ Reaction to fire CPR: B2ca-s1b, d1, a1 / Cca-s1b, d2, a1 according to EN 50575

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
