Coaxial cable for television signals

Coaxial cable for the reception and distribution of digital terrestrial, analogue and digital satellite television signals. These cables do not have a rated voltage and cannot be used in electric power transmission circuits.
COAXIAL SATELLITE 17 VATC cable performance


Electrical performance

These cables do not have a rated voltage and cannot be used in electric power transmission circuits.

Standard

EN 50117-1.
Approvals

RoHS

CE
Construction Products Regulation (CPR)

Dca -s1a, d1, a1


Thermal performance

Maximum conductor temperature: 70°C.
Minimum service temperature: -15°C (mobile service).
Other

Meter by meter marking.


Installation conditions


Open Air.

In conduit. On tray.
Applications

Digital terrestrial television.

Analogical satellite. Digital.
Packaging

Available in 100m rolls.


COAXIAL SATELLITE 17 VATC cable design
Conductor

Electrolytic copper, class 1, based on EN 60228 and IEC 60228.

Insulation

Polyethylene HDPE according to UNE-EN 50290-2-23 .

Screen

Copper screen and aluminum-polyester tape with overlapping copper braid, ensuring 100% screening coverage.

Outer sheath

PVC, white colour.

CE, RoHS

EN 50117-1

Dca -s1a, d1, a1

Meter by meter marking

Available in 100m rolls

THERMAL PERFORMANCE

✔ Maximum service temperature: 70ºC.
✔ Minimum service temperature: -15ºC

APPROVALS

✔ CE
✔ RoHS

BASED ON

✔ EN 50117-1

CONSTRUCTION PRODUCT REGULATION

✔ Dca -s1a, d1, a1

OTHERS

✔ Meter by meter marking.

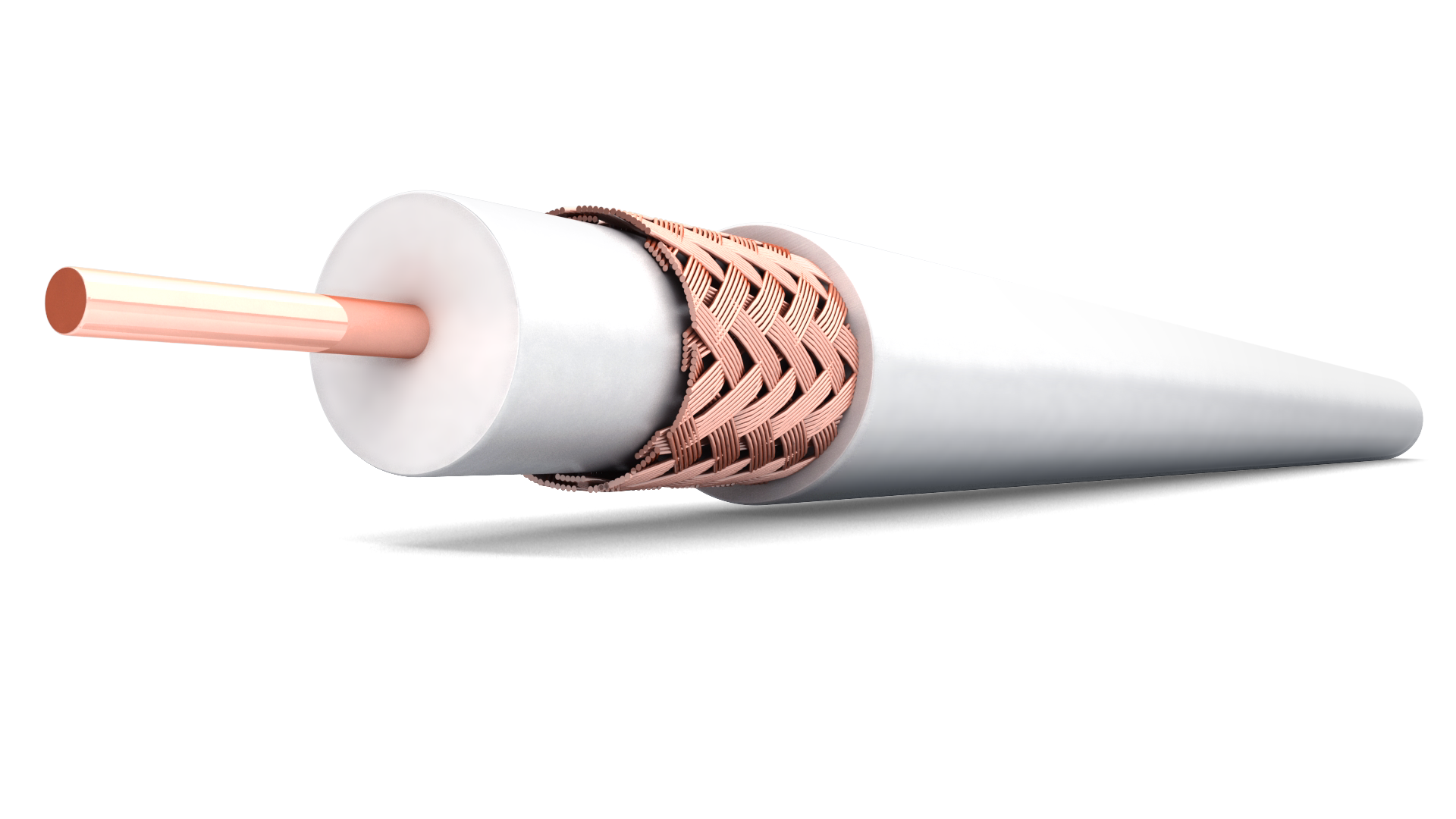

Technology


1. Conductor
Electrolytic copper, class 1, based on EN 60228 and IEC 60228.

2. Insulation
Polyethylene HDPE according to UNE-EN 50290-2-23 .

3. Screen
Copper screen and aluminum-polyester tape with overlapping copper braid, ensuring 100% screening coverage.

4. Outer sheath
PVC, white colour.

Other cables with similar properties
