Flexible cable for mobile service

The cable X-PUR® H07BQ-F is a flexible cable for mobile service. Suitable for installations where the cable must withstand medium mechanical stress, for machines in industrial and agricultural workshops, for motors and transportable machines on construction sites, for wind turbines and for agricultural exploitations.

X-PUR® H07BQ-F cable performance

Electrical performance

Low voltage: 450/750V.

Standard

EN 50525-2-21

Approvals

RoHS

CE AENOR HAR Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (static with protection).

Fire performance

No flame propagation: according to EN 60332-1 (not <HAR> requirement).

Mechanical performance

Minimum bending radius:

x3 cable diameter (cable <12mm)

x4 cable diameter (cable ≥ 12mm) Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Excellent.

Other

Meter by meter marking.

Installation conditions

Open air

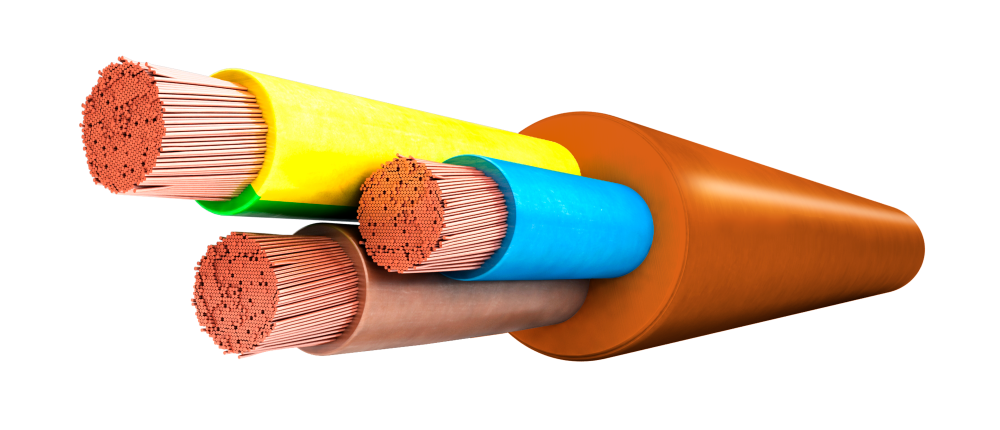

X-PUR® H07BQ-F cable design

Conductor

Electrolytic copper conductor, class 5 flexible according to EN 60228 and IEC 60228.

Insulation

Cross-linked elastomeric insulation, type E16 according to EN 50363-1. The standard identification, according to HD 308 is the following: 1x Natural 2x Blue + Brown 3G Blue + Brown + Yellow/Green 4G Blue + Brown + Grey + Yellow/Green 5G Blue + Brown + Grey + Blue + Yellow/Green

Lay-up

The cores are twisted together.

Outer sheath

Thermoplastic polyurethane type TMPU according to EN 50363-10-2. Orange color.
