Flat cables for lifts, cranes, hoists and conveyor systems.

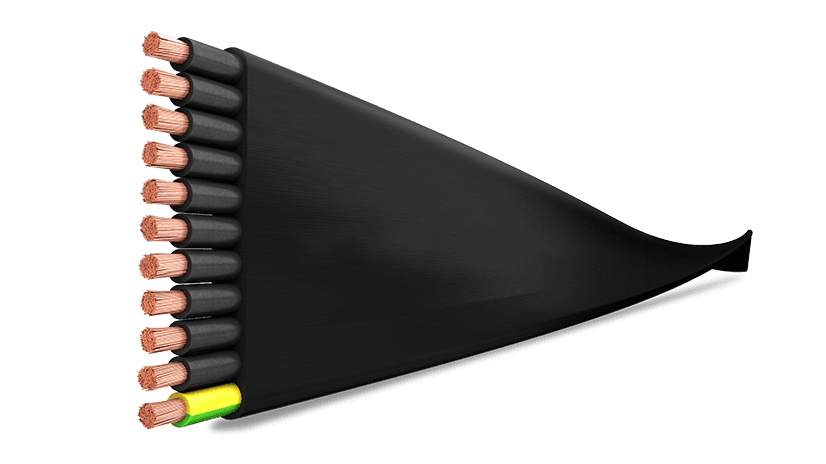

TOPFLAT H05VVH6-F and H07VVH6-F is a flat cable specially designed for cranes, lifts, hoists, drum reeling and conveyor systems. The hanging length of the cable can reach up to 35m and its pull out speed can reach up to 1.6 m/s (overlaying cables is not recommended when installing).

TOPFLAT H05VVH6-F and H07VVH6-F cable performance

Electrical performance

LOW VOLTAGE 300/500 V 450/750 V

NOMINAL VOLTAGE H05VVH6-F (up to 1 mm2): 300/500 · V. H07VVH6-F (from 1,5 mm2): 450/750 V.

Standard

HD 359 / EN 50214 / IEC 60277-6

Approvals

HAR / AENOR / CE / RoHS

Thermal performance

Maximum conductor temperature: 70ºC.

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: 0ºC.

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Mechanical performance

Minimum bending radius on pulleys (to 20 ± 10ºC): Festooned as in gantry cranes: 10 x smaller dimension Deflected by pulleys: 10 x smaller dimension Free movement: 5 x smaller dimension

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

Water performance

Water resistance: AD5 Jets.

Other

Meter by meter marking.

Applications

Industrial use.

Mobile use.

Bridge cranes.

Elevators, lifts.

Conveyors.

TOPFLAT H05VVH6-F and H07VVH6-F cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Flexible PVC type TI2, according to EN 50363-3.

The standard identification of insulated conductors according to HD 308 and EN 50334, is the following:

4 G Brown + Black + Grey + Green/yellow

6 or more conductors Black numbered+ Green/yellow

Lay-up Insulated conductors are placed side by side in a parallel arrangement, forming a flat cable.

Outer sheath

Flexible PVC outer sheath type TM2 according to EN 50363-4-1, black color. The ripcord allows you to gently tear the outer-sheath.

LOW VOLTAGE 300/500 V 450/750 V

Flame non-propagation based on EN 60332-1 and IEC 60332-1

Maximum service temperature: 70ºC.

EN 60332-1 / EN 60332-3

HD 359 – EN 50214

Minimum bending radius on pulleys (to 20 ± 10oC): Festooned as in gantry cranes: 10 x smaller dimension · Deflected by pulleys: 10 x smaller dimension · Free movement: 5 x smaller dimension
