Aluminium cable for power transmission.

This Aluminuim cable POWERHARD RV AL U-1000 AR2V is suitable for all types of underground networks for public power distribution, as well as low voltage connexions in industrial plants, urban networks, buildings, etc. Due to its rigidity, its use is recommended in installations with a simple configuration where a flexible cable is not needed.

POWERHARD RV AL U-1000 AR2V cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

UNE-HD 603-5N / XP C 32-321 / IEC 60502-1

Approvals

NF-USE / AENOR / CE / RoHS

CPR Construction Products Regulation

Eca

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance

Minimum bending radius: x 5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Good.

UV Resistant: UNE 211605 and XP-C 32-321.

Water performance

Water resistance: AD8 Submersion.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

Distribution network.

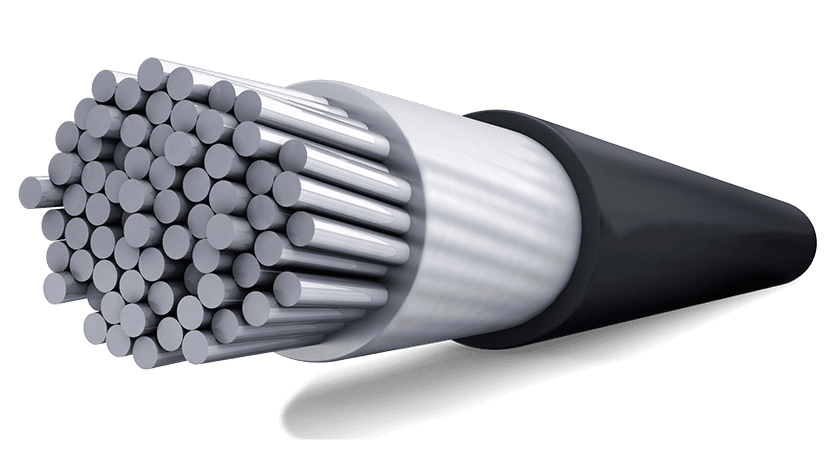

POWERHARD RV AL U-1000 AR2V cable design

Conductor

Aluminium, class 2 based on EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene type DIX-3 according to HD 603 (XLPE) according to IEC 60502-1 and compound insulation according to XP C 32-321.

The standard identification of insulated conductors according to HD 308, is the following: 1x Natural 2x Blue + Brown 3x Brown + Black + Grey 3x + 1 Brown + Black + Grey + Blue (reduced cross-section) 4G Brown + Black + Grey + Green/Yellow 4x Brown + Black + Grey + Blue

Outer sheath

Flexible PVC, type DMV-18 according to HD 603, type ST2 according to IEC 60502-1 and compound outer sheath according to XP C 32-321. Black or grey color.

LOW VOLTAGE 0,6/1kV

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Maximum service temperature: 90ºC.

EN 60332-1 / NF C 32-070

Industrial use / Distribution network.

Eca

CHEMICAL PERFORMANCE

✔ Chemical & Oil resistance: Good.
✔ UV Resistant: UNE 211605 and NF-C 32-323.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
