Aluminium halogen free (LSHF) cable for power transmission

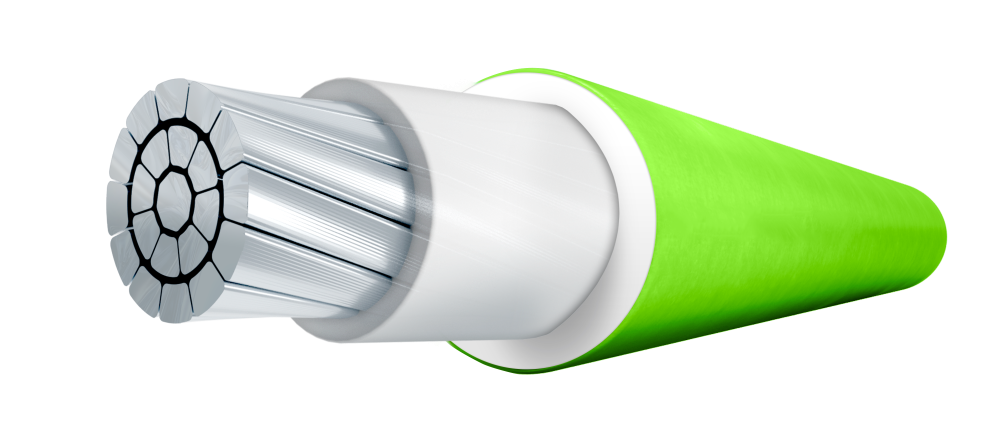

TOXFREE ZH RZ1 (AS) AL is an aluminium LSHF cable for fixed installations. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. These cables are especially recommended for installation in public places and in installations where safety is a priority.

TOXFREE ZH RZ1 (AS) AL cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60502-1 / UNE 21123-4

Approvals

CE / RoHS

CPR Construction Products Regulation

B2ca s1a, d1, a1, or B2ca s1b, d1, a1

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: -0ºC.

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3 / IEC 60332-3 and EN 50399.

LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 80%

Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.

Reaction to fire CPR: B2ca s1a, d1, a1, or Cca-s1a, d1, a1 according to EN 50575.

Mechanical performance

Minimum bending radius: x 5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

UV Resistant according to EN 50618.

Water performance

Water resistance: AD8 Submersion.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

Public places.

TOXFREE ZH RZ1 (AS) AL cable design

Conductor

Aluminium, class 2, based on N 60228 and IEC 60228.

Insulation

Cross-linked polyethylene (XLPE) according to IEC 60502-1 and type DIX-3 according to HD 603.

The standard identification of insulated conductors according to HD 308 is the following:

1 x Natural 2 x Blue + Brown 3 G Blue + Brown + Green/Yellow 3 x Brown + Black + Grey 3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section) 4 G Brown + Black + Grey + Green/Yellow 4x Brown+Black+Grey+Blue 5 G Brown + Black + Grey + Blue + Green/Yellow 6 or more Black numbered + Green/Yellow

Outer sheath

Low Smoke Halogen Free (LSHF) polyolefin type ST8 according to IEC 60502- 1 and type DMZ-E according to UNE 21123-4. Green color.

LOW VOLTAGE 0,6/1kV

Maximum service temperature: 90ºC.

UNE-EN 60332-1 / UNE-EN 60332-3 / UNE-EN 50267-1 / UNE-EN 50267-2 / UNE-EN 61034

Industrial use and public places.

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

CHEMICAL PERFORMANCE

✔ UV Resistant: based on UNE 211605.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ Low smoke halogen free according to IEC 60754-1
✔ Reaction to fire CPR: Cca-s1a, d1, a1, based on EN 50575.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
