The universal cable for power transmission with improved fire proof properties.

POWERFLEX Plus YMvKf cable is suitable for all types of industrial low voltage connections, urban grids, building installations, etc. This cable is fire retardant and is recommended for use in public places and hazardous industries. Its flexibility makes installation substantially easier, making it highly suitable for difficult layouts. This cable can also be used in buried installations or in tubes or outdoors without requiring additional protection. This cable withstands damp conditions and even total submersion in water (AD7).

POWERFLEX PLUS YMvKf cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60502-1 / HD 604-4-D

Approvals

KEMA KEUR / CE / RoHS /AENOR / BUREAU VERITAS

CPR Construction Products Regulation

Cca-s2, d2, a3

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3-24 / IEC 60332-3-24 and EN 50399.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Cca -s2,d2,a3, according to EN 50575.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

UV Resistant according to UNE 211605.

Water performance

Water resistance: AD7 Immersion.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

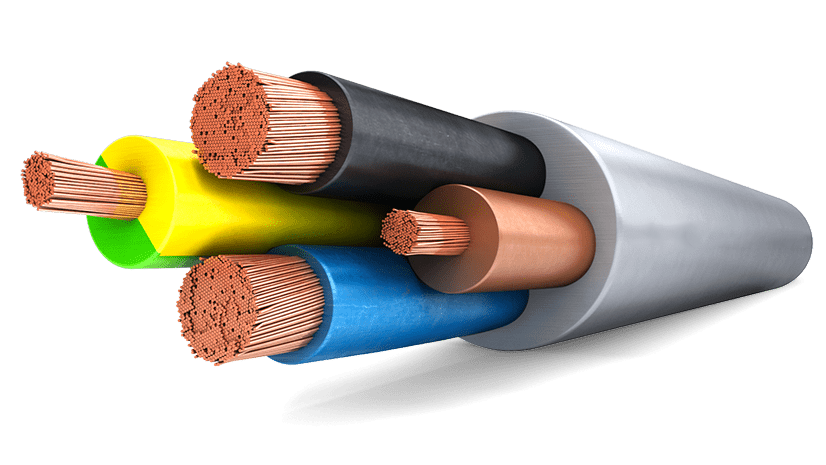

POWERFLEX PLUS YMvKf cable design

Conductor

Electrolytic annealed copper, class 5 (flexible) based on IEC 60228 and IEC 60228.

Insulation

Cross-linked polyethylene (XLPE) according to IEC 60502-1.

The standard identification of insulated conductors, according to HD 308 is the following:

1 x Black

2 x Blue + Brown

3 x Blue + brown + grey

4 G Black + brown + grey + Green/yellow

5 G Brown + Black + Grey + Blue + Green/yellow

Outer sheath

Flexible PVC type ST2 according to IEC 60502-1, grey color.

LOW VOLTAGE 0,6/1kV

Reaction to fire CPR: Cca-s2,d2,a3 according to 50575.

Maximum service temperature: 90ºC.

EN 60332-1 / EN 60332-3

Industrial use.

Cca-s2,d2,a3

IEC 60502-1

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

CHEMICAL PERFORMANCE

✔ UV Resistant: based on UNE 211605.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Cca-s2,d2,a3 according to 50575.
✔ Reduced halogen emission. Chlorine <15%.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
