Industrial flexible cable for power transmission.

Powerflex RV-K cable is suitable for all types of low voltage industrial-type connections, in urban grids, building installations, etc. Its high flexibility makes the installation process substantially easier and, as a result, is particularly suitable for use in difficult layouts. It can be buried or installed in a tube as well as outdoors without requiring additional protection. This cable can withstand damp conditions including total immersion in water (AD8).

Performance of POWERFLEX RV-K cable

Electrical performance

Low voltage: 0,6 / 1kV

Standards

IEC 60502-1 - UNE 21123-2

Approvals

AENOR / BUREAU VERITAS / KEMA KEUR / CE / RoHS

CPR (Construction Products Regulation)

Eca

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (máx. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: 0ºC (on cable surface).

Fire performance

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reaction to fire CPR: E ca, according to EN 50575.

Reduced halogen emission. Chlorine <15%.

Mechanical performance

Minimum bending radius: 5x cable diameter.

Impact resistance: AG2 Medim severity.

Environmental performance

Chemical & Oil resistance: Good. UV Resistant: UNE 211605.

Water resistance: AD8 immersion.

Installation conditions

Open Air.

Buried.

In conduit.

In tray.

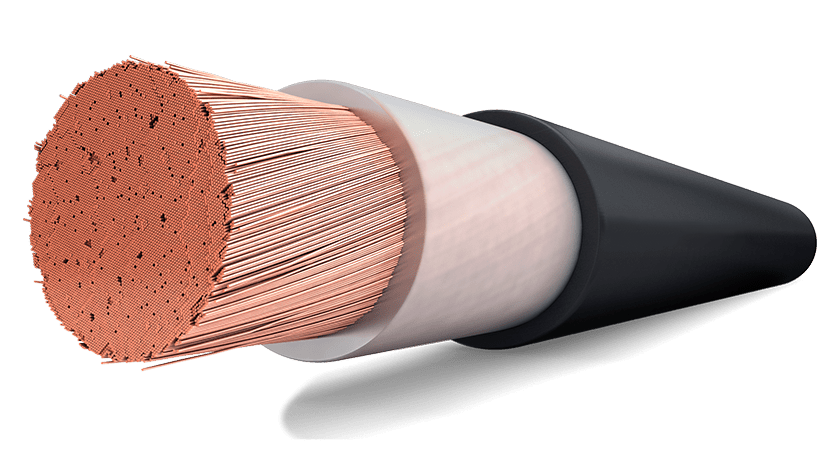

Design of POWERFLEX RV-K cable

Conductor

Electrolytic annealed copper conductor, class 5(flexible) according to EN 60228 and IEC 60228

Insulation

Cross-linked polyethylene insulation type DIX-3 according to HD 603-1 and type XLPE according to IEC 60502-1. The standard identification of insulated conductors according to HD 308 is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

6G or more Black numbered + Green/Yellow

Outer sheath

Flexible PVC outer sheath, type DMV-18 according to HD 603-1 and type ST2 according to IEC 60502-1. Black color.

LOW VOLTAGE 0,6/1kV

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Maximum service temperature: 90ºC.

UNE-EN 60332-1

Industrial use. / Urban grids.

Eca

IEC 60502-1 / UNE 21123-2

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Good.
✔ UV Resistant: UNE 211605.
✔ Water resistance: AD8 Submersion.

CHEMICAL PERFORMANCE

✔ Chemical & Oil resistance: Good.
✔ UV Resistant: based on UNE 211605.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum installation and handling temperature: 0ºC (on cable surface).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
