Halogen free (LSZH) screened power cable.
TOXFREE ZH Z1C4Z1-K AS is a screened LSZH safety cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is highly recommended for public places and for all installations where it is necessary avoid to electric interference of nearby circuits.
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1 / UNE 21123-4
Approvals
CE
RoHS
Construction Product Regulation
Cca -s1a, d1, a1
Thermal performance
Maximum conductor temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (static, with protection).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
LOW VOLTAGE 0,6/1kV
Maximum service temperature: 70ºC.
Industrial use.
Cca -s1a, d1, a1
✔ Chemical & Oil resistance: Acceptable.
✔ UV Resistant based on EN 50618.
✔ LOW VOLTAGE 0,6/1kV
✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ Low smoke halogen free according to IEC 60754-1
✔ Reaction to fire CPR: Cca-s1a, d1, a1, based on EN 50575.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Water resistance: AD5 Jets.
✔ Industrial use.
✔ CE
✔ RoHS
✔ IEC 60502-1 / UNE 21123-4
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Cca s1a, d1, a1
✔ Electric fields resistant.
✔ Meter by meter marking.
✔ Ripcord.
✔ EN 60332-1 / EN 60332-3
✔ IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034

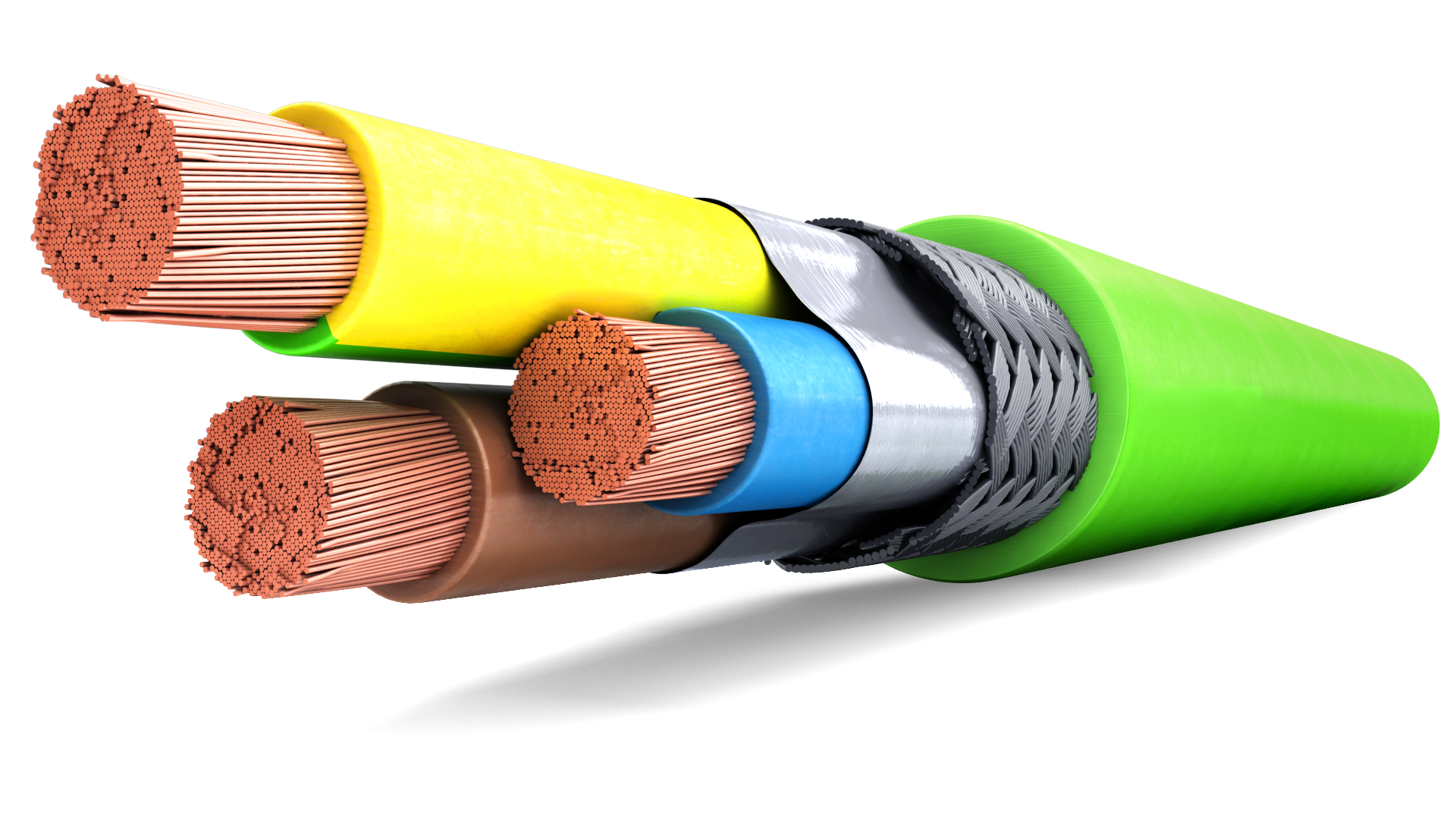

1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyolefin
The standard identification of insulated conductors is the following:
1 x natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
4 G Brown + Black + Grey + Yellow/green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Yellow/green
6 G or more conductors: Black numbered + Yellow/green.
3. Screen
Coverage of 100% composed by aluminium-polyester tape and tinned copper braid.
4. Outer sheath
Low Smoke Zero Halogen (LSZH) polyolefin. Green color, fire retardant. The ripcord allows you to gently tear the outer-sheath allowing you to gently peel it away without damaging the screen.
