Flexible LSZH power cable for public places | B2ca-s1a,d1,a1

TOXFREE ZH RZ1-K AS (AS) is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc.

TOXFREE ZH RZ1-K (AS) cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60502-1 / UNE 21123-4

Approvals

AENOR / SEC / KEMA KEUR / CE / RoHS

CPR (Construction Product Regulation)

B2ca s1a, d1, a1 or Cca s1a, d1, a1 (according to cross-section)

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: -0ºC.

Fire performance

Flame non-propagation according to EN 60332-1/IEC 60332-1.

Fire non-propagation according to EN 60332-3/IEC 60332-3 and EN 50399.

LSHF (Low Smoke Halogen Free) based on EN 60754-1/IEC 60754-1.

Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 80%.

Low corrosive gases emission based on EN 60754-2/IEC 60754-2.

Reaction to fire CPR: B2ca s1a, d1, a1 or Cca s1a, d1, a1 (see cross-section), according to EN 50575.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Acceptable.

UV Resistant according to EN 50618.

Water resistance: AD8 Submersion.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

Public places.

Packaging

Available in rolls (lengths of 100 m) and drums.

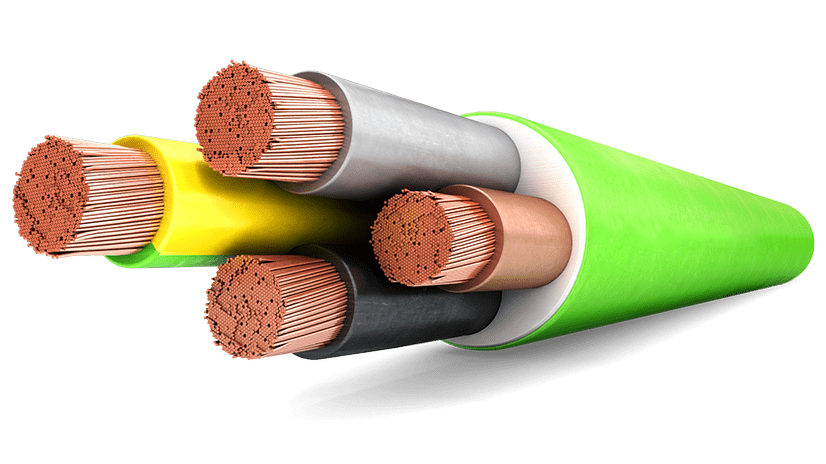

TOXFREE ZH RZ1-K (AS) cable design

Conductor

Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene type XLPE according to IEC 60502-1 and type DIX-3 according to HD 603. The standard identification of insulated conductors according to HD 308 is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

6 G or more Black numbered + Green/Yellow

Outer sheath

Low Smoke Halogen Free (LSHF) polyolefin outer sheath, type ST8 according to IEC 60502- 1 and type DMZ-E according to UNE 21123-4. Green color.

LOW VOLTAGE 0,6/1kV

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Maximum service temperature: 90ºC.

Industrial use / Public places.

AENOR / SEC / KEMA KEUR / CE / RoHS

UV resistant EN 50618

B2ca s1a, d1, a1 |||| Cca s1a, d1, a1

IEC 60502-1 / UNE 21123-4

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.
✔ UV Resistant according to EN 50618.
✔ Water resistance: AD8 Submersion.

CHEMICAL PERFORMANCE

✔ UV Resistant: based on UNE 211605.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
✔ Reaction to fire CPR: Cca-s1a, d1, a1, based on EN 50575.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
