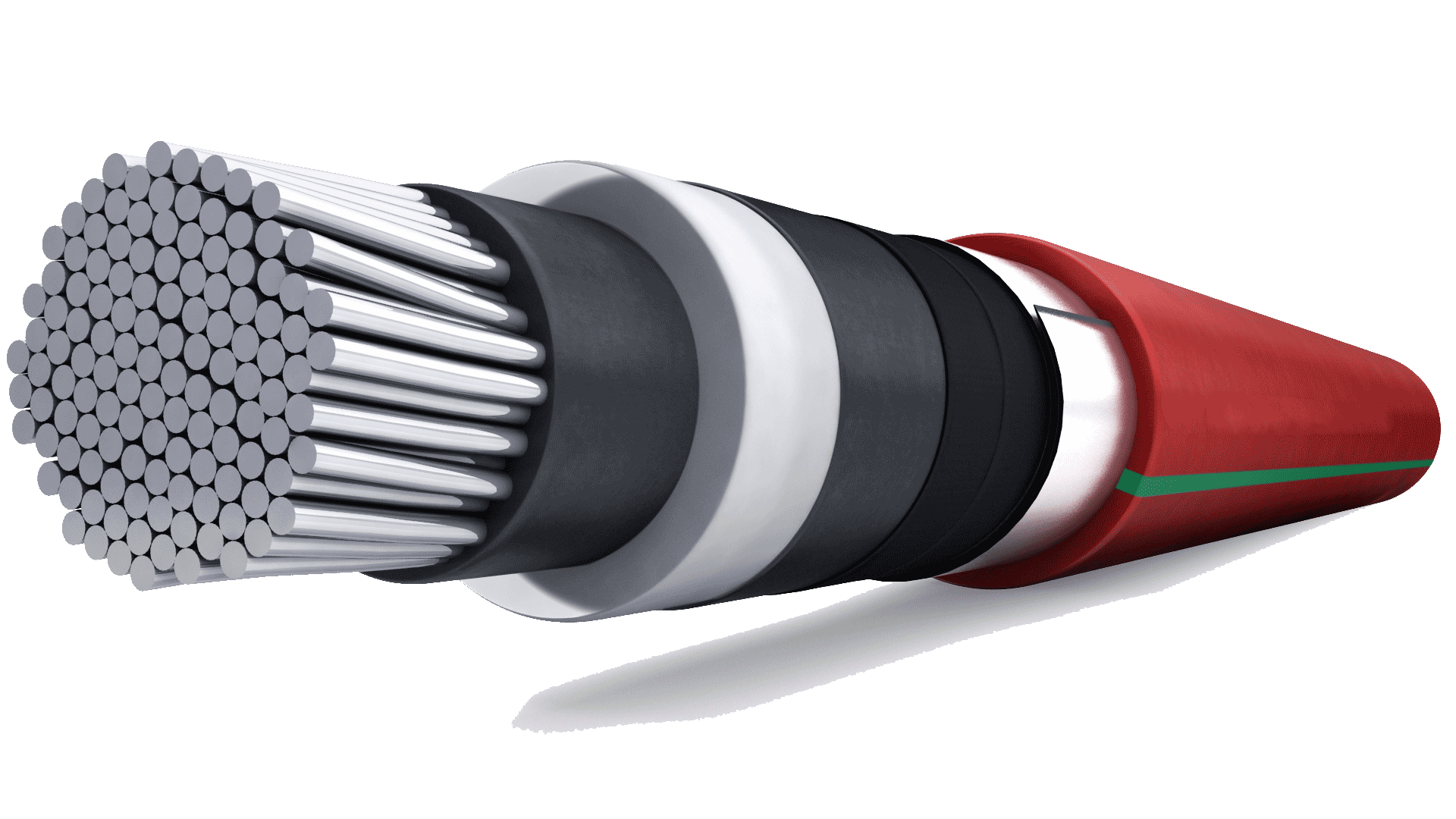

Medium voltage aluminium cable, XLPE insulation, halogen free with longitudinal aluminium strip screen.
X-VOLT® AL RH5Z1-OL/-2OL is a Medium Voltage aluminium cable for fixed installations. Halogen free. Suitable for transport and distribution of electric power in medium voltage networks. This cable is suitable for indoor, outdoor and buried installations.
Electrical performance
MEDIUM VOLTAGE: 12/20 kV and 18/30 kV
Standard
UNE 211620 / ENEL Global Standard GSC001 ApprovalsAENOR
Thermal performance
Maximum service temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum installation temperature: 0 °C.Minimum service temperature: -15ºC.
LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: 15x cable diameter.
Minimum bending radius while installation: 20x cable diameter. Abrasion resistant.Environmental performance
UV resistant according to UNE 211605.
Water resistance: AD8 Submersion.Conductor
Aluminium conductor class 2 according to EN 60228 and IEC 60228. Optionally, with longitudinal water tightness (cable type -2OL).
Conductor screen
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
Cross-linked polyethylene type DIX-3 according to HD 620-1, natural colour. Cross-linked in catenary line with nitrogen atmosphere.
Insulation screen
Screen over the insulation, made of thermosetting semiconductor material. Strippable.Metalic screen
Aluminium tape of thickness 0,3 mm longitudinally applied on the water-blocking. The tape is overlapped and bonded 5 mm minimum. The screen is longitudinally and continually fixed in the outer sheath.Water blocking
Semi-conducting swellable tape, placed on metallic screenOuter sheath
Polyethylene outer sheath halogen free type DMZ1 according to HD 620-1. Red colour.
Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
Maximum conductor temperature: 90ºC.
AENOR
UNE 211620 / ENEL Global Standard GSC001
Water resistance: AD8 Submersion.
✔ Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum installation temperature: 0 °C
✔ Minimum service temperature: -15ºC
✔ MEDIUM VOLTAGE 12/20 kV and 18/30 kV.
✔ UV Resistant: UNE 211605.
✔ Water resistance: AD8 Submersion.
✔ AENOR
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ UNE 211620 / ENEL Global Standard GSC001

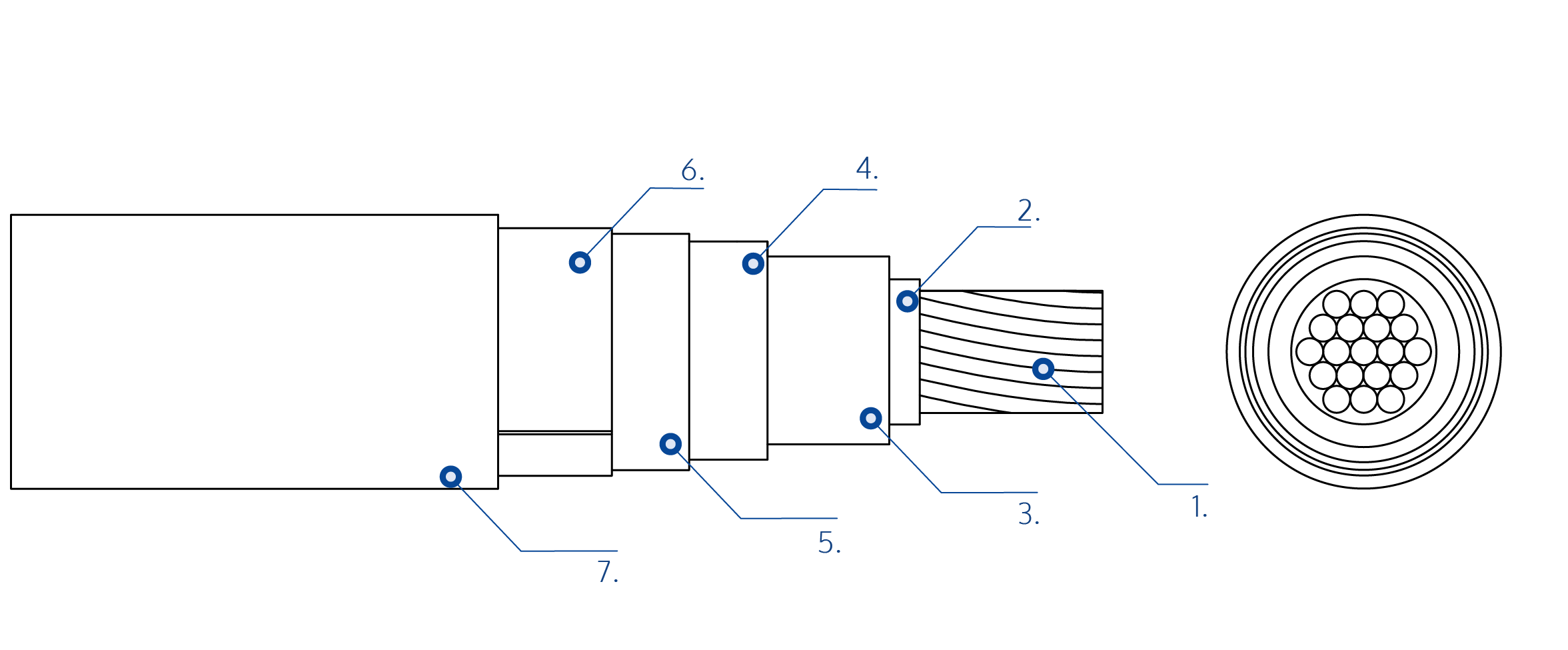

1. Conductor
Aluminium conductor class 2 according to EN 60228 and IEC 60228. Optionally, with longitudinal water tightness (cable type -2OL).
2. Conductor screen
Screen over the conductor, made of thermosetting semiconductor material.
3. Insulation
Cross-linked polyethylene type DIX-3 according to HD 620-1, natural colour. Cross-linked in catenary line with nitrogen atmosphere.
4. Insulation screen
Screen over the insulation, made of thermosetting semiconductor material. Strippable.
5. Metalic screen
Aluminium tape of thickness 0,3 mm longitudinally applied on the water-blocking. The tape is overlapped and bonded 5 mm minimum. The screen is longitudinally and continually fixed in the outer sheath.
6. Water blocking
Semi-conducting swellable tape, placed on metallic screen.
7. Outer sheath
Polyethylene outer sheath halogen free type DMZ1 according to HD 620-1. Red colour.
