X-VOLT RHZ1 6,35/11kV is a Medium Voltage aluminium cable halogen-free for fixed installations. Suitable for transport and distribution of electric power.
X-VOLT RHZ1 6,35/11kV AL cable performance
Electrical performance
MEDIUM VOLTAGE: 6,35/11 kV.
Aluminium Medium Voltage cable, XLPE insulation, halogen free, in triplex formation.
X-VOLT RHZ1 6,35/11kV is a Medium Voltage aluminium cable halogen-free for fixed installations. Suitable for transport and distribution of electric power.
Electrical performance
MEDIUM VOLTAGE: 6,35/11 kV.
Standard
IEC 60502-2 / BS 7870-4.10.
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC
Fire performance
Reaction to Fire CPR: Fca according to EN 50575.
Halogen free according to EN 60754-1 and IEC 60754-1.
Mechanical performance
Minimum bending radius: x15 cable diameter.
Abrasion resistant.
Tear resistant.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Distribution networks.
Other
Meter by meter marking.
Conductor
Aluminium conductor, class 2, according to EN 60228 and IEC 60228.
Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
Cross-linked polyethylene (XLPE), according to IEC 60502-2, natural color.
External semiconductor
Screen over the insulation, made of thermosetting and strippable semiconductor material.
Metallic screen
Screen of copper wires and copper tape, with a minimum cross-section of 16mm2.
Longitudinal sealing
Hygroscopic tape completely covering the screen (cable type –OL and -2OL).
Outer sheath
MEDIUM VOLTAGE 6,35/11 kV.
Halogen free based on EN 60754-1.
Maximum service temperature: 90ºC.
Distribution networks.
✔ MEDIUM VOLTAGE 6,35/11 kV.
✔ Halogen free based on EN 60754-1
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -15ºC
✔ Minimum bending radius: x15 cable diameter.
✔ AENOR
✔ Distribution networks.
✔ BS 7870-4.10 / IEC 60502-2.
✔ EN 60228 / IEC 60228
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Meter by meter marking.

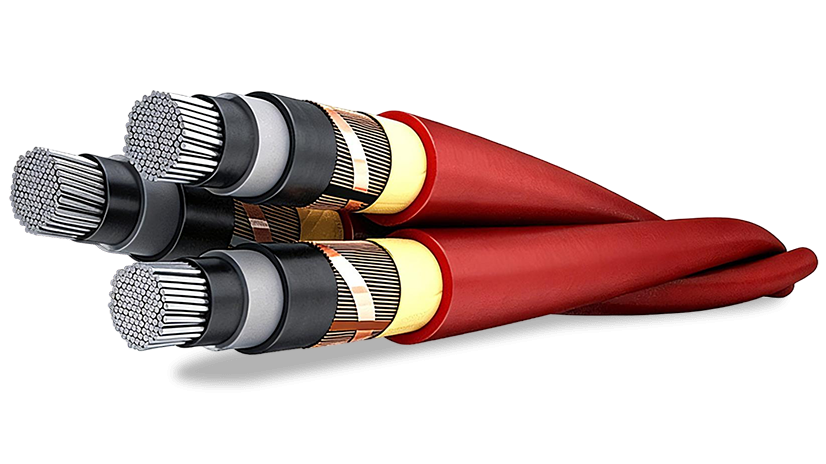

1. Conductor
Aluminium conductor, class 2, based on EN 60228 and IEC 60228.
2. Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
3. Insulation
Cross-linked polyethylene (XLPE), according to IEC 60502-2, natural color.
Cross linked in catenary line with nitrogen atmosphere through a triple layer extrusion process.
4. External semiconductor
Screen over the insulation, made of thermosetting and strippable semiconductor material.
5. Metallic screen
Screen of copper wires and copper tape, applied over the outer semiconductirng layer, with a minimum cross-section of 32mm2.
6. Longitudinal sealing
Hygroscopic tape completely covering the screen (cable type –OL and -2OL).
7. Outer sheath
Polyethylene type ST7 according to IEC 60502-2, red color.
