X-VOLT® RHZ1 (AS) is a Medium Voltage copper cable halogen-free with low smoke emission and no fire propagation properties for fixed installations. Suitable for transport and distribution of electric power in medium voltage networks.
Medium voltage copper cal¡ble, XLPE insulation
X-VOLT® RHZ1 (AS) is a Medium Voltage copper cable halogen-free with low smoke emission and no fire propagation properties for fixed installations. Suitable for transport and distribution of electric power in medium voltage networks.
Electrical performance
MEDIUM VOLTAGE: 6/10 kV, 8,7/15 kV, 12/20 kV and 18/30 kV
Standard
IEC 60502-2 ApprovalsAENOR
CPR Construction Product Regulation
Cca -s1b, d2, a1
Thermal performance
Maximum service temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC.
Flame non-propagation according to EN 60332-1 / IEC 60332-1.
Fire non-propagation according to EN 50399.LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.
Low smoke emission according to EN 61034 / 61034. Light transmittance >60%. Reaction to fire CPR: Cca -s1b, d2, a1 according to EN 50575.Mechanical performance
Minimum bending radius: 15x cable diameter.
Abrasion resistant. Tear resistant.Environmental performance
UV resistant according to UNE 211605.
Installation conditions
Open air. Buried. In conduit.Conductor
Electrolytic annealed copper conductor class 2 according to EN 60228 and IEC 60228. Optionally, with longitudinal water tightness (cable type -2OL).
Conductor screen
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
Cross-linked polyethylene type XLPE according to IEC 60502-2, natural colour. Cross linked in catenary line with nitrogen atmosphere through a triple layer extrusion process.
Insulation screen
Screen over the insulation, made of thermosetting and strippable semiconductor material.Metalic screen
Copper wires and copper tape screen, with a minimum cross-section of 16mm2.Longitudinal water tightness
Hygroscopic tape completely covering the screen (cable type –OL and -2OL).Filling
Additional fireproof polyolefin layer, halogen free.Outer sheath
Polyolefin outer sheath type ST7 according to IEC 60502-2. Red colour with two green stripes. Other colours under request.
Flame non-propagation based on EN 60332-1 and IEC 60332-1
Maximum conductor temperature: 90ºC.
AENOR
Cca s1b, d2,a1
✔ Abrasion resistant.
✔ Minimum bending radius: x 15 cable diameter.
✔ Tear resistant.
✔ ire non-propagation according to EN 50399
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
✔ Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
✔ Reaction to fire CPR: Cca-s1b, d2, a1 according to EN 50575.
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -15ºC
✔ MEDIUM VOLTAGE 6/10 kV, 8,7/15 kV, 12/20 kV and 18/30 kV.
✔ UV Resistant: UNE 211605.
✔ AENOR
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Cca s1b, d2, a1
✔ IEC 60502-2.

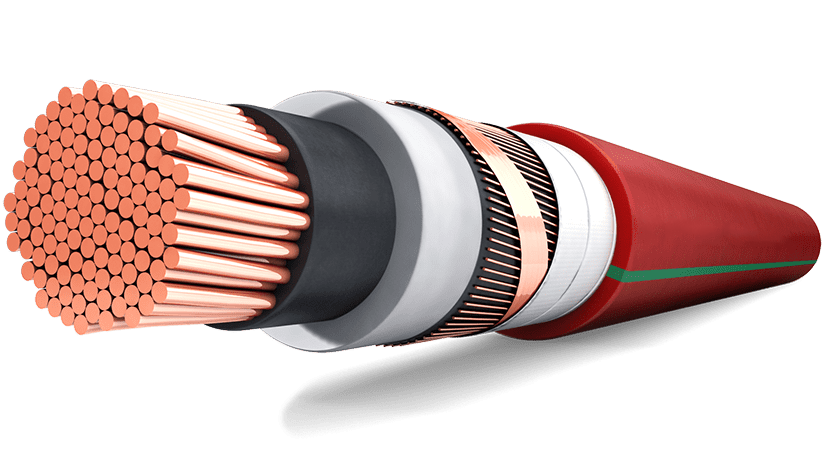

1. Conductor
Electrolytic annealed copper, class 2 according to EN 60228 and IEC 60228. Optionally, with longitudinal water tightness (cable type -2OL).
2. Conductor screen
Screen over the conductor, made of thermosetting semiconductor material.
3. Insulation
Cross-linked polyethylene type XLPE according to IEC 60502-2 and type DIX3 according to HD 620-1, natural colour. Cross linked in catenary line with nitrogen atmosphere through a triple layer extrusion process.
4. Insulation screen
Screen over the insulation, made of thermosetting and strippable semiconductor material.
5. Metalic screen
Copper wires and copper tape screen, with a minimum cross-section of 16mm2.
6. Longitudinal water tightness
Hygroscopic tape completely covering the screen (cable type –OL and -2OL).
7. Filling
Additional fireproof polyolefin layer, halogen free.
8. Outer sheath
Polyolefin outer sheath type ST7 according to IEC 60502-2 and type DMZ2 according to HD 620-1. Red colour with two grey stripes. Other colours under request.
