Aluminium cable for buried photovoltaic installations

The TOPSOLAR® PV LSZH AL 1500V HEAVY DUTY cable can be directly buried in most soils. They can be installed in smaller trenches as no sand or external backfill is required. The special outer sheath compounds make this cable highly resistant to possible shocks and friction during its installation (impact and tearing). In addition, the cable is AD8 water resistant (submersible). Finally, this cable resists degradation caused by ultraviolet (UV) rays as it is tested for UV protection according to the solar standard EN 50618.

TOPSOLAR PV LSZH Al 1500 V HEAVY DUTY cable performance

Electrical performance

LOW VOLTAGE 1,5/1,5 (1,8) kV DC according to EN 50618 | 1,8/3 (3,6) kV AC according to IEC 60502-1

Standard

IEC 60502-1

Approvals

RoHS / CE

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: 0°C (on cable surface).

Fire performance

Halogen free according to EN 60754-1 / IEC 60754-1.

Low corrosive gases emission according to EN 60754-2 / IEC 60754- 2.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Impact resistance: AG4 (≤ 40 J) Extra high severity according to NF C 33-226. Abrasion according to NF C 33-226.

Environmental performance

UV Resistant according to EN 50618.

Water resistance: AD8 Submersion.

Installation conditions

Open air. Buried. In conduit.

Other

Meter by meter marking.

Applications

Buried photovoltaic installations.

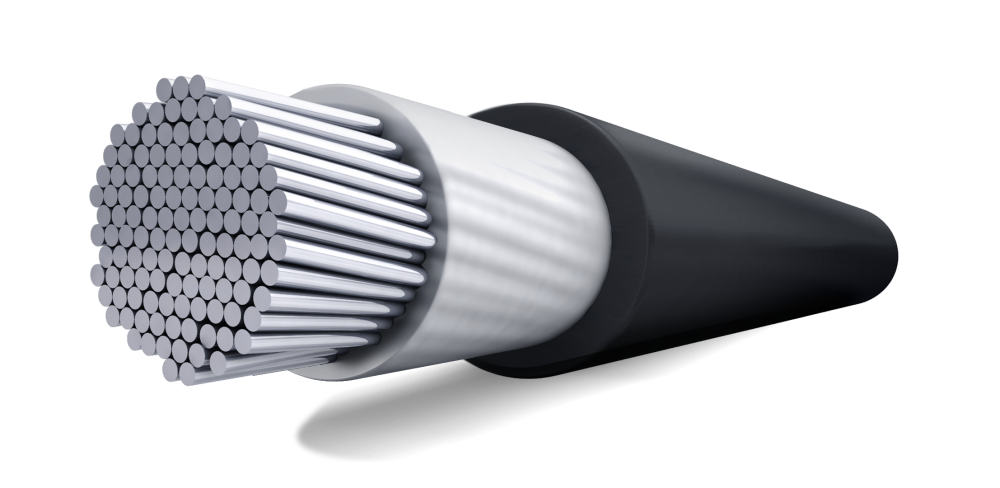

TOPSOLAR PV LSZH Al 1500 V HEAVY DUTY cable design

Conductor

Aluminium class 2 according to EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene type XLPE according to IEC 60502-1. Natural colour.

Outer sheath

Polyethylene halogen free and UV resistant, type ST7 according to IEC 60502-1 with extra thickness as protection for direct buried cables. Black colour.

Halogen free based on EN 60754-1

Maximum short-circuit temperature: 250ºC (max. 5 s).

Solar PV installations.

IEC 60502-1

Water resistance: AD8 Submersion.

MECHANICAL PERFORMANCE

✔ Abrasion resistant.
✔ Impact resistance: AG4 (≤ 40 J) Extra high severity according to NF C 33-226.
✔ Minimum bending radius: x5 cable diameter.

ENVIRONMENTAL PERFORMANCE

✔ UV Resistant according to EN 50618.

FIRE PERFORMANCE

✔ Halogen free based on EN 60754-1
✔ Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 1,5/1,5kV · ( 1,8) kV DC
✔ LOW VOLTAGE 1,8/3kV

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum installation and handling temperature: 0ºC (on cable surface).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
