Aluminium PV cable.

DC Feeder Aluminium 1500 PV cable is suitable for all types of underground and open air solar installations. This cable is recommended for connections between string boxes and photovoltaic inverters in large scale rooftops or ground farms.

TOPSOLAR PV AL 1500V cable performance

Electrical performance

Low voltage 1,5/1,5 (1,8) kV CC based on EN 50618 · 1,8/3 (3,6) kV according to IEC 60502-1.

Standard

IEC 60502-1

CPR Construction Products Regulation Eca

Approvals

CE / RoHS

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: 0°C (on cable surface).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Reduced halogen emission . Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance

Minimum bending radius: x 5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical resistance: Good. Grease & mineral oils resistance: Good. Ozone Resistant based on EN 50618.

UV Resistant based on EN 50618 and HD 605/A1.

Water performance

Water presence: AD8 submerged.

Other

Meter by meter marking.

Optional: rodent-proof and termite-proof. Estimated lifetime: 30 years based on UNE-EN 60216-2.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Solar installations.

Heavy impact and armoured versions also available.

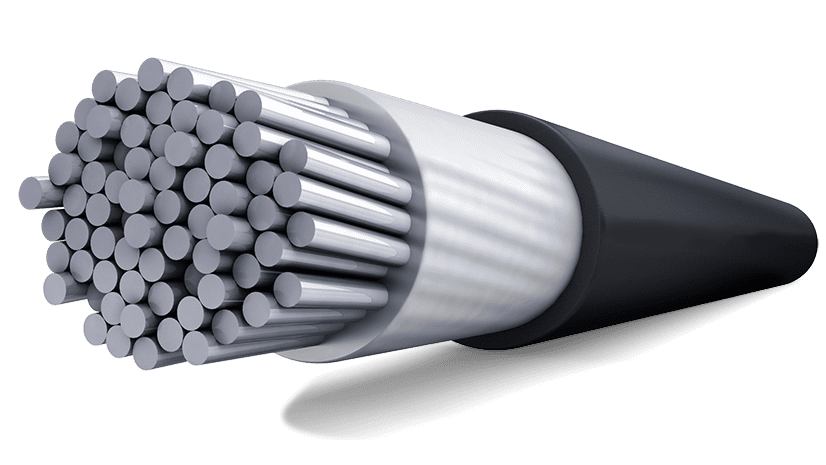

TOPSOLAR PV AL 1500V cable design

Conductor

Aluminium, class 2 based on EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene (XLPE) according to IEC 60502-1. Natural color.

Outer sheath

Special flexible UV resistant PVC, type ST2 according to IEC 60502-1. Black color.

LOW VOLTAGE 1,5 / 1,5 kV · 1,8/3 (3,6) kV AC according to IEC 60502-1

Maximum service temperature: 90ºC.

Solar PV installations · Heavy impact and armoured versions also available.

IEC 60502-1

CHEMICAL PERFORMANCE

✔ Chemical & Oil resistance: Good.
✔ Grease & mineral oils resistance: Good.
✔ UV Resistant based on EN 50618.

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum installation and handling temperature: 0ºC (on cable surface).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
