TOXFREE MARINE PLUS XTCuZ1-K (AS+) with bedding_FIRE RESISTANT CABLES_Products

The Toxfree Marine Plus XTCuZ1-K (AS+) is specially designed to transmit electric power in the presence of fire, assuring electric supply to emergency circuits, like signalling lights, smoke extractors, acoustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, th

The Toxfree Marine Plus XTCuZ1-K (AS+) is specially designed to transmit electric power in the presence of fire, assuring electric supply to emergency circuits, like signalling lights, smoke extractors, acoustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places and marine applications.

TOXFREE MARINE PLUS XTCuZ1-K (AS+) cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60092-353

Approvals

DNV-GL ABS

BUREAU VERITAS

LLOYD'S REGISTER CE

RoHS

Thermal performance

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed installations).

Lowest installation temperature: -15ºC.

Fire performance

Flame non-propagation according to IEC 60332-1.

Fire non-propagation according to IEC 60332-3-22. Fire resistant according to IEC 60331-21 (90 minutes at 750ºC). LSZH (Low Smoke Zero Halogen) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.

Mechanical performance

Minimum bending radius: x6 cable diameter.

Impact resistance: AG3 High severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

UV resistant according to EN 50618.

Water performance

Water resistance: AD6 waves.

Other

Meter by meter marking.

Ripcord. Electric fields resistant.

Installation conditions

Open Air.

In conduit.

On a bulkhead.

Applications

Marine use.

Public places.

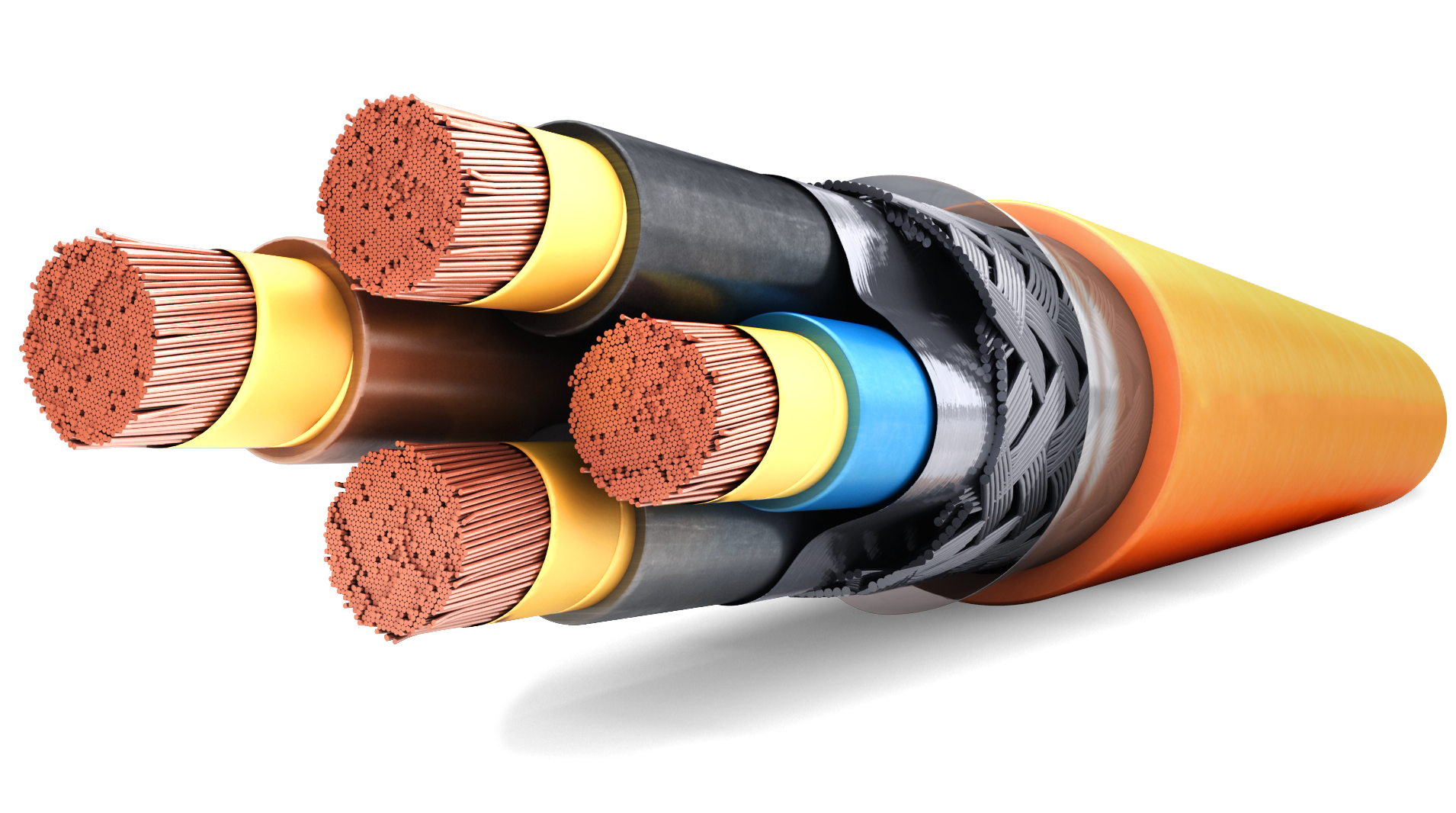

TOXFREE MARINE PLUS XTCuZ1-K (AS+) cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228.

Insulation

Mica Tape + Cross linked polyethylene type XLPE 90ºC according to IEC 60092-360.

The standard identification is the following:

1x Natural

2 x Blue + Brown

3 x Brown + Black + Grey

4 x Brown + Black + Grey + Blue

5 or more conductors: black numbered

Other colors available on request.

Armour

Coverage of 100% composed by aluminium-polyester tape and a tinned copper braid.

Outer sheath

LSHF thermoplastic polyolefin outer sheath SHF1 type. acording to IEC 60092-360. Orange color, non-toxic, fire retardant and fire resistant.

LOW VOLTAGE 0.6/1 KV

Flame non-propagation based on IEC 60332-1.

Maximum service temperature: 90ºC.

Marine use / Public places

UV resistant based on EN 50618.

IEC 60092-353

MECHANICAL PERFORMANCE

✔ Impact resistance: AG3 High severity
✔ Minimum bending radius: 6x cable diameter

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3-22 and IEC 60332-3-22.
✔ Fire resistant based on EN 60331-21 and IEC 60331-21.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
✔ Low smoke halogen free according to IEC 60754-1

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0.6/1 KV

THERMAL PERFORMANCE

✔ Lowest installation temperature: -15ºC
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
