TÜV solar PV cable.

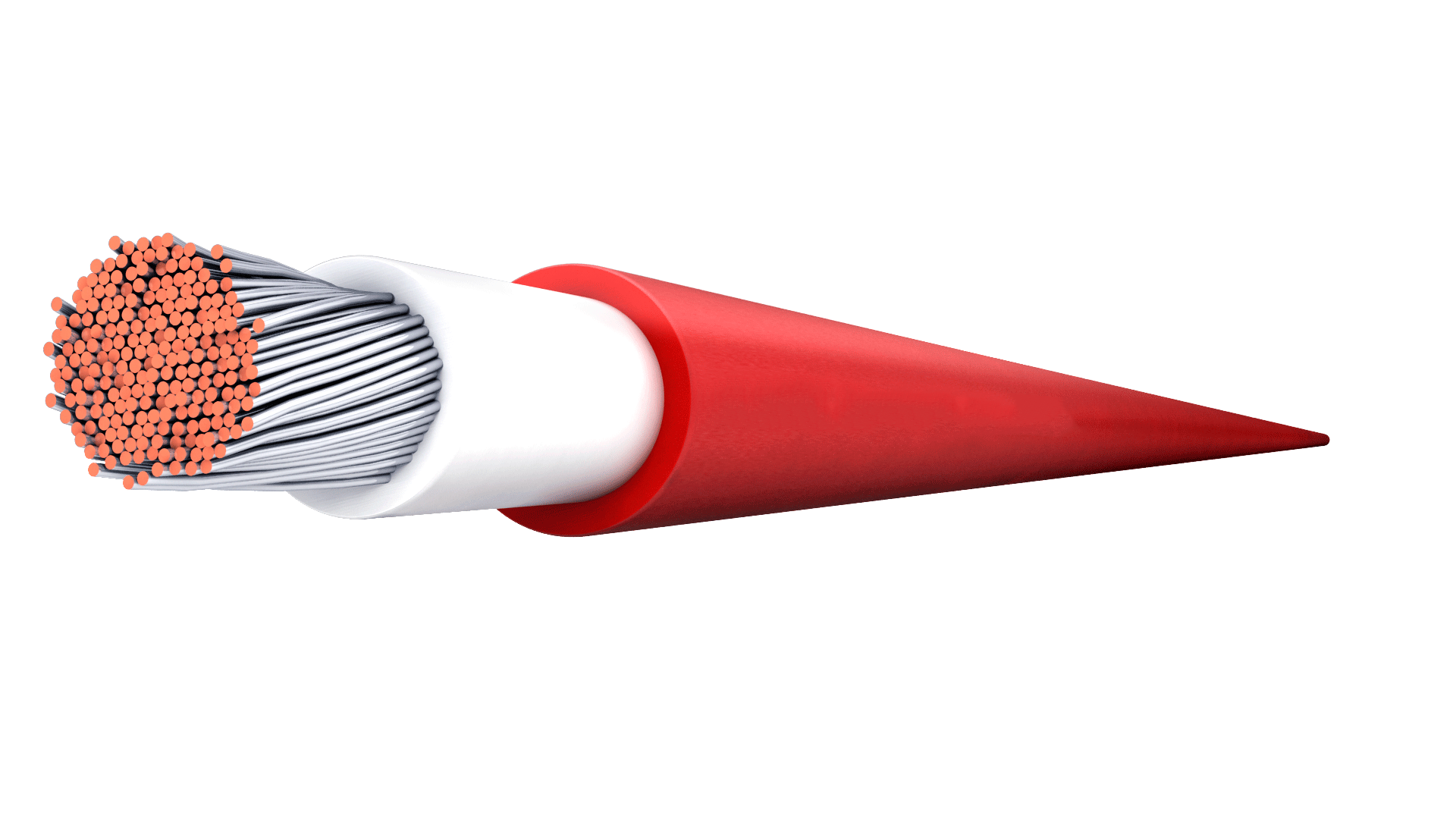

The Topsolar PV H1Z2Z2-K cable, which is TÜV certified according to EN 50618 and AENOR, is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially designed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.

TOPSOLAR PV H1Z2Z2-K cable performance

Electrical performance

LOW VOLTAGE 1,5 (1,8) kV DC · 1,0/1,0 kV AC.

Standard

EN 50618 / IEC 62930 / UTE C 32-502

Approvals

TÜV / RETIE / CE / RoHS / AENOR / UKCA

CPR Construction Product Regulation

Cca -s1b, d2, a1

Thermal performance

Maximum conductor temperature: 90º (120ºC during 20000 h).

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC. (fixed and protected installations)

Fire performance

Flame non-propagation based on EN 60332-1-2 and IEC 60332-1-2.

Fire non-propagation according to EN 50399.

LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Reaction to fire CPR: Cca -s1b, d2, a1, according to EN 50575.

Mechanical performance

Minimum bending radius:

x4 cable diameter (≤ 8mm)

x5 cable diameter (8 < cable diameter ≤ 12)

x6 cable diameter (> 12mm)

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Excellent.

Grease & mineral oils resistance: Excellent.

Ozone resistant based on EN 50618.

UV Resistant based on EN 50618 and IEC 62930.

Water performance

Water presence: AD8 submersion.

Estimated Lifetime

Estimated lifetime 30 years based on EN 50618.

Other

Meter by meter marking.

Optional: rodent-proof and termite-proof.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Solar PV installations.

Packaging

Available in rolls (lengths of 100 m) and reels.

TOPSOLAR PV H1Z2Z2-K cable design

Conductor

Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.

Insulation

Low smoke halogen Free (LSHF) rubber according to table B1 in Annex B of EN 50618 and IEC 62930.

Outer sheath

Low smoke halogen Free (LSHF) rubber, red or black color.

LOW VOLTAGE 1,5/1,5kV · ( 1,8) kV DC

Maximum service temperature: 120ºC.

EN 50618/ IEC 62930 / UTE C 32-502

Solar PV installations.

TUV, RETIE, CE, ROHS, AENOR, UKCA

Cca-s1b,d2,a1

EN 50618/ IEC 62930 / UTE C 32-502

Estimated lifetime 30 years based on EN 50618.

Available in rolls (lenghts of 100m) and reels.

CHEMICAL PERFORMANCE

✔ Chemical & Oil resistance: Excellent.
✔ Grease & mineral oils resistance: Excelente
✔ UV Resistant based on EN 50618.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 1,5/1,5kV · ( 1,8) kV DC

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
✔ Low smoke halogen free according to IEC 60754-1
✔ Reaction to fire CPR: Cca-s1b, d2, a1 according to EN 50575.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

✔ Maximum conductor temperature: 90°C (120°C during 20.000 h).
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC.
