Flexible screened PVC cable, for safe signal transmission.
SCREENFLEX 110 LiYCY VC4V-K & 200 VC4V-K is a screened control cable. It is used in all types of signal transmission connections where the voltage induced by an exterior electromagnetic field may affect the signal transmitted. Its most common applications are: control circuits, electronic equipment connections, computer systems, etc.
Electrical performance
LOW VOLTAGE 300/500 V (up to 1,5mm2) | 0,6/1kV (from 2,5mm2 onwards).
Standard
EN 50525 / IEC 60502-1
Approvals
CE / RoHS
CPR Construction Product Regulation
Cca -s2, d1, a3 (grey outer sheath 300/500 V)Eca (black outer sheath).
Thermal performance
Maximum conductor temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3 and IEC 60332-3 (only grey outer sheath).
Reduced emission of halogens. Chlorine <15%.
Reaction to fire CPR: Cca -s2, d1, a3 (grey outer sheath 300/500V), Cca -s3, d1, a3 (grey outer sheath 0,6/1kV) or Eca (black outer sheath), according to EN 50575.Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Good.
UV Resistant: UNE 211605.
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Ripcord.
Electric fields resistant.
Applications
Industrial use.
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Flexible PVC type TI2 according to EN 50363-3 and type PVC/A according to IEC 60502-1.
The standard identification of insulated conductors is the following:
1 x natural
2 x Blue + Brown
3 x Blue + Black + Grey
3 G Blue + Brown + Green/yellow
4 G Brown + Black + Grey + Green/yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Green/yellow + Blue
6 G Black numbered + Green/yellow.
Other identifications (JZ, OZ, J, Z) are available on request.
Screen
Aluminium-polyester tape screen with overlapping tinned copper braid, ensuring full screening coverage.
Outer sheath
Flexible PVC type TM2 according to EN 50363-4-1 and type ST1 according to IEC 60502-1, black or grey colour (grey for fire non-propagation). The ripcord allows you to gently tear the outer-sheath allowing you to gently peel it away without damaging the screen.
Fire non-propagation based on UNE-EN 60332-3 and IEC 60332-3 (only grey outer sheath).
Maximum conductor temperature: 70ºC.
EN 60332-1 / EN 60332-3
Industrial use.
E ca (Black outer sheath), C ca -s2,d1,a3 (Grey outer sheath 300/500 V)
✔ Chemical & Oil resistance: Good.
✔ Chemical & Oil resistance: Good.
✔ UV Resistant: based on UNE 211605.
✔ LOW VOLTAGE 0,6/1kV
✔ LOW VOLTAGE 300/500 V
✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reduced halogen emission. Chlorine <15%.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
✔ temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Water resistance: AD5 Jets.
✔ Industrial use.
✔ CE
✔ RoHS
✔ IEC 60502-1
✔ UNE-EN 50525
✔ Cca s2, d1, a3
✔ Eca
✔ Electric fields resistant.
✔ Meter by meter marking.
✔ Ripcord.
✔ EN 60332-1 / EN 60332-3
✔ IEC 60332-1 / IEC 60332-3
✔ IEC 60502-1

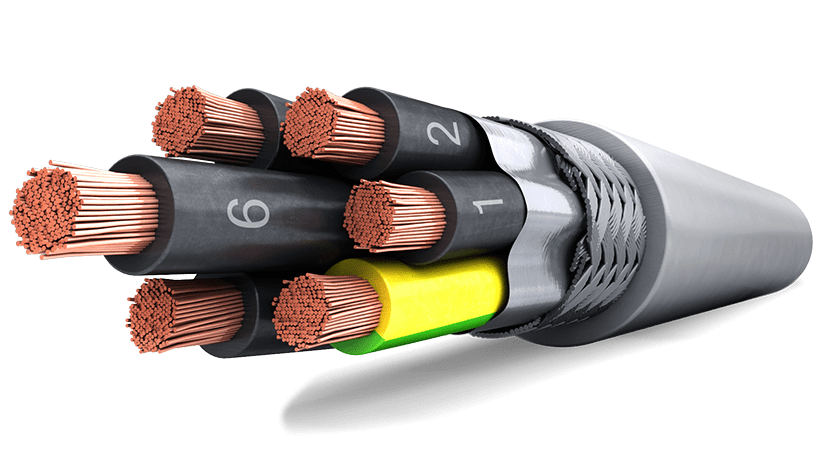

1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 & 50525 and IEC 60228 & 60502-1.
2. Insulation
Flexible PVC type TI2 according to EN 50363-3 and type PVC/A according to IEC 60502-1.
The standard identification of insulated conductors is the following:
1 x natural
2 x Blue + Brown
3 x Blue + Black + Grey
3 G Blue + Brown + Yellow/green
4 G Brown + Black + Grey + Yellow/green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Yellow/green + Blue
6 G Black numbered + Yellow/green.
Other identifications (JZ, OZ, J, Z) are available on request.
3. Screen
Aluminium-polyester tape screen with overlapping tinned copper braid, ensuring full screening coverage.
4. Outer sheath
Flexible PVC type TM2 according to EN 50363-4-1 and type ST1 according to IEC 60502-1, black or grey color (grey for fire non-propagation). The ripcord allows you to gently tear the outer-sheath allowing you to gently peel it away without damaging the screen.
