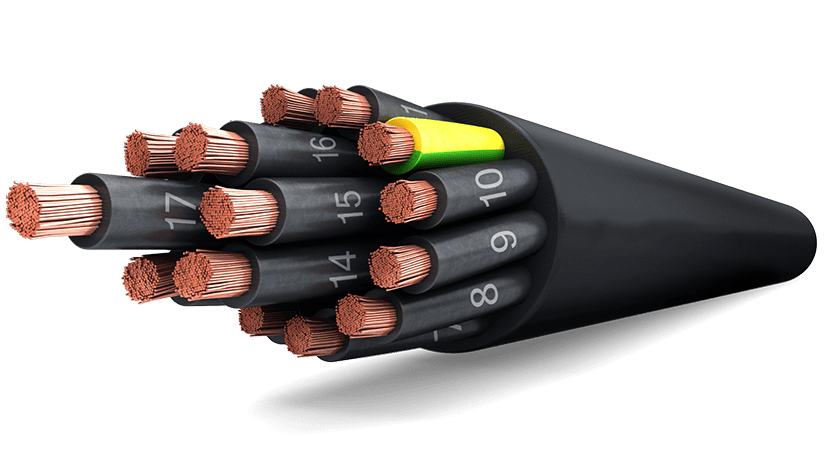

Flexible 0,6/1kV control cable.
FLEXTEL 200 VV-K cable is suitable for fixed installations with complex layouts where flexible cables are required. It is also ideal for connecting motors or frequency converters. The characteristics of the outer sheath material make this cable extremely versatile as it provides a high level of protection in all types of environments.
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1
Approvals
CE / RoHS
Construction Product Regulation
Eca
Thermal performance
Maximum conductor temperature: 70ºC (HD)
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations)
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Reduced emission of halogens. Chlorine <15%.
Reaction to fire CPR: Eca, according to EN 50575.Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Good.
UV Resistant: UNE 211605, Annex A.2.
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Flexible PVC.
The standard identification of insulated conductors is the following:
1 x Natural
2 x Brown + Blue
3 G Brown + Blue + Green/yellow
3 x Brown + Black +Blue
4 G Brown + Black + Blue + Green/yellow
4 x Brown + Black + Black + Blue
5 G Brown + Black + Black + Blue + Yellow/Green
6 or more conductors Black numbered+ Yellow/Green
Other identifications are possible on request.
Outer sheath
Flexible PVC type ST1 according to IEC 60502-1, black color. Other colors available on request.
LOW VOLTAGE 0,6/1kV
EN 60332-1
Industrial use.
Eca
✔ Chemical & Oil resistance: Good.
✔ UV Resistant: based on UNE 211605.
✔ LOW VOLTAGE 0,6/1kV
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
✔ temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Water resistance: AD5 Jets.
✔ Industrial use.
✔ CE
✔ RoHS
✔ IEC 60502-1
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Eca
✔ EN 60332-1 / EN 60332-3
✔ IEC 60332-1
✔ Meter by meter marking.
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Flexible PVC.
The standard identification of insulated conductors is the following:
1 x Natural
2 x Brown + Blue
3 G Brown + Blue + Yellow/green
4 G Brown + Black + Blue + Yellow/green
4 x Brown + Black + Black + Blue
5 G Brown + Black + Black + Blue + Yellow/green
6 or more conductors Black numbered+ Yellow/green
Other identifications are possible on request.
3. Outer sheath
Flexible PVC type ST1 according to IEC 60502-1, black color. Other colors available on request.
