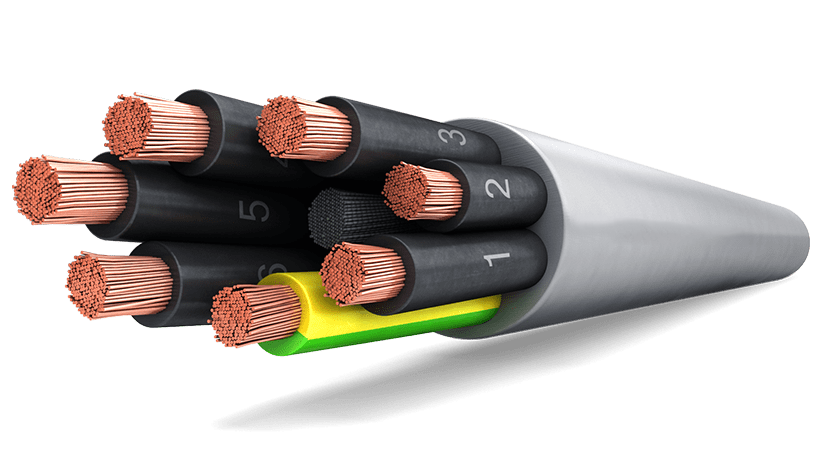

Flexible oil resistant control cable, for mobile use.
FLEXTEL 140 H05VV5-F is a cable for signalling and control systems. It is especially suitable for connecting industrial equipment and machine tools. Due to its properties, it is recommended for robotics and light mobile services. Its special vinilic outer sheath compound is particularly resistant to mineral oils and other chemical agents. It can be installed in either dry or humid environments.
Electrical performance
LOW VOLTAGE 300/500 V
Standard
EN 50525-2-51 / IEC 60227
Approvals
HAR / AENOR / CE / RoHS
CPR Construction Product Regulation
Eca
Thermal performance
Maximum conductor temperature: 60ºC.
Maximum short-circuit temperature: 150ºC (max. 5 s).
Minimum service temperature: 5ºC.
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Reaction to fire CPR: Eca, according to EN 50575.Mechanical performance
Minimum bending radius: 3 x cable diameter (up to 12 mm). 4 x cable diameter (12 mm onwards).
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Installation conditions
Open Air.
In conduit.
Applications
Industrial use.
Mobile use.
Robotics.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Flexible PVC type TI2 according to EN 50363-3.
The standard identification of insulated conductors, according to EN 50334 and HD 308 is the following:
2 x Black numbered
3 or more conductors Black numbered + Green/yellow
Outer sheath
Flexible PVC oil resistant outer sheath, grey color.
LOW VOLTAGE 300/500 V
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Maximum service temperature: 60ºC.
UNE-EN 60332-1
Industrial use / Mobile use / Robotics
Eca
✔ Chemical & Oil resistance: Excellent.
✔ Grease & mineral oils resistance: Good.
✔ LOW VOLTAGE 300/500 V
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: 3 x cable Ø (up to 12 mm2).
✔ 4 x cable Ø (12 mm2 onwards).
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
✔ temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: 5ºC.
✔ Water resistance: AD5 Jets.
✔ AENOR
✔ CE
✔ HAR
✔ RoHS
✔ Industrial use.
✔ Mobile use.
✔ Robotics.
✔ EN 50525-2-51
✔ IEC 60227
✔ Eca
✔ IEC 60332-1
✔ In conduit.
✔ Open Air.
✔ Meter by meter marking.
✔ UNE-EN 60332-1
