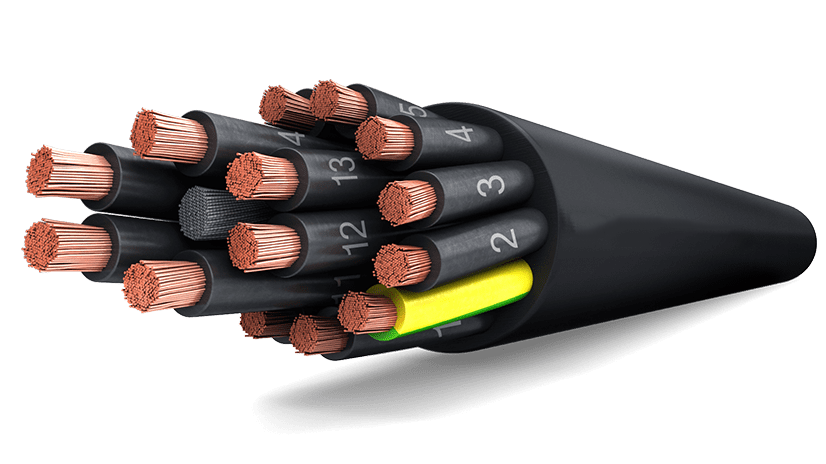

FLEXTEL 110 ES05VV-F is a flexible cable for mobile service. Suitable for the connection of machinery parts used in manufacturing, including machine tools. Suitable for indoor use. Its installation is recommended in fixed ducts.
Flexible multi-conductor control cable for mobile use.
FLEXTEL 110 ES05VV-F is a flexible cable for mobile service. Suitable for the connection of machinery parts used in manufacturing, including machine tools. Suitable for indoor use. Its installation is recommended in fixed ducts.
Electrical performance
LOW VOLTAGE 300/500 V
TEST VOLTAGE 2000V / 5 minStandard
UNE 21031-5-1 C
Approvals
CE / RoHS
CPR Construction Product Regulation
Eca
Thermal performance
Maximum conductor temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: 0ºC (mobile service) and -30°C (fixed installation).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Reduced halogen emission: Chlorine <15%.
Reaction to fire CPR: Eca, according to EN 50575.Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Good.
UV resistant based on UNE 211605.Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Installation conditions
Open Air.
In conduit.
Buried.Applications
Mobile use.
Domestic use.
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Flexible PVC, type TI2 according to EN 50363-3.
The standard identification of insulated conductors is the following:
6 or more conductors Black numbered + Green/yellow
Outer sheath
Flexible PVC, type TM2 according to EN 50363-4-1, grey or black color.
LOW VOLTAGE 300/500 V
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
Maximum service temperature: 60ºC.
EN 60332-1
Domestic use / Mobile use
Eca
In conduit
✔ Chemical & Oil resistance: Good.
✔ UV Resistant: based on UNE 211605.
✔ LOW VOLTAGE 300/500 V
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
✔ temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: 0ºC (mobile service) and -30°C (fixed installation).
✔ Water resistance: AD5 Jets.
✔ Domestic use.
✔ Mobile use.
✔ CE
✔ RoHS
✔ UNE 21031-5 1C
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Eca
✔ EN 60332-1 / EN 60332-3
✔ IEC 60332-1
✔ Meter by meter marking.
1. Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Flexible PVC, type TI2 according to EN 50363-3.
The standard identification of insulated conductors is the following:
6 or more conductors Black numbered + Yellow/ Green
3. Outer sheath
Flexible PVC, type TM2 according to EN 50363-4-1, grey or black color.
