Halogen free (LSZH) armoured cable with steel or aluminium tape armour.
TOXFREE ZH RZ1FZ1-K AS is an armoured LSZH safety cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is highly recommended for public places, in installations with presence of rodents, and installations in general where the cable is subject to risk of mechanical aggression.
TOXFREE ZH RZ1FZ1-K AS cable performance
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1 / UNE 21123-4
Approvals
CE
RoHS
CPR Construction Products Regulation
Cca-s1b, d1, a1
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3 and IEC 60332-3.
LSZH (Low Smoke Zero Halogen) based on EN 60754-1 and IEC 60754-1.
Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: x10 cable diameter.
Impact resistance: AG4 High severity.
Rodent proof
Chemical performance
Chemical & Oil resistance: Acceptable.
UV Resistant: EN 50618.
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Applications
Industrial use.
TOXFREE ZH RZ1FZ1-K AS cable design
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Cross-linked polyethylene (XLPE).
The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Green/yellow
3 x Brown+ Black+ Grey
4 G Brown + Black + Grey + Green/yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/yellow
6 or more Black numbered + Green/yellow
Separation sheath
Low smoke zero halogen (LSZH) polyolefin inner sheath.
Armour
Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.
Outer sheath
Low Smoke Zero Halogen (LSZH) polyolefin type ST8 according to IEC 60502-1 and type DMZ-E according to UNE 21123-4. Green colour, non-toxic and fire retardant.
LOW VOLTAGE 0,6/1kV
Flame non-propagation based on EN 60332-1 and IEC 60332-1
Maximum service temperature: 90ºC.
EN 60332-1 / EN 60332-3 / EN 50267-1 / EN 50267-2 / EN 61034
Industrial use.
✔ Chemical & Oil resistance: Acceptable.
✔ UV Resistant based on EN 50618.
✔ LOW VOLTAGE 0,6/1kV
✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
✔ Low smoke halogen free according to IEC 60754-1
✔ Reaction to fire CPR: Cca-s1b, d2, a1 according to EN 50575.
✔ Impact resistance: AG4 High severity.
✔ Minimum bending radius: x10 cable diameter.
✔ Rodent proof
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
✔ temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Water resistance: AD5 Jets.
✔ Industrial use.
✔ CE
✔ RoHS
✔ IEC 60502-1 / UNE 21123-4
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Cca s1a, d1, a1
✔ EN 60332-1 / EN 60332-3 / EN 50267-1 / EN 50267-2 / EN 61034
✔ IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
✔ Meter by meter marking.

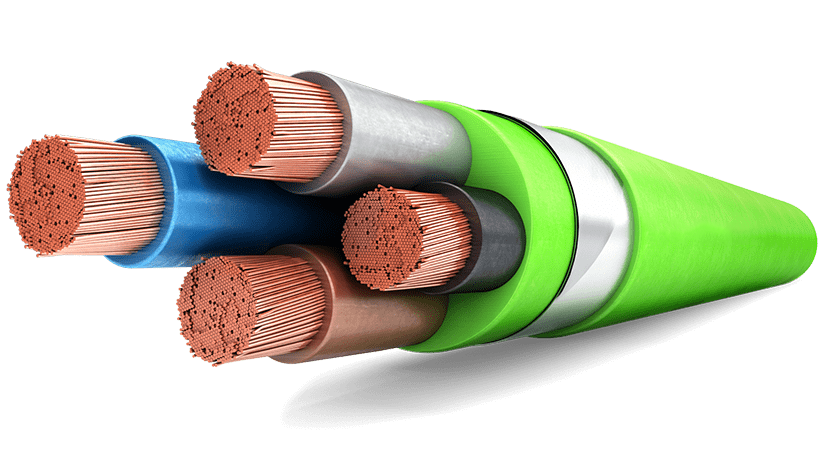

1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE).
The standard identification of insulated conductors is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
3 x Brown+ Black+ Grey
4 G Brown + Black + Grey + Yellow/green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Yellow/green
6 or more Black numbered + Green/yellow
3. Armour bedding
Low smoke zero halogen (LSZH) polyolefin inner sheath.
4. Armour
Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.
5. Outer sheath
Low Smoke Zero Halogen (LSZH) polyolefin type ST8 according to IEC 60502-1 and type DMZ-E according to UNE 21123-4. Green color, non-toxic and fire retardant.
