Flexible LSZH power cable, for public places.
Toxfree® ZH N1 X1G1 Flex is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping centers, offices, laboratories, etc.
TOXFREE ZH FR-N1 X1G1 Flex cable performance
Electrical performance
LOW VOLTAGE 0,6/1 kV
Standard
NF C 32-323
Approvals
CE
UKCA
RoHS
AENOR KEMA-KEUR SEC
Construction Product Regulation
B2ca -s1a, d1, a1 (according to cross-section) or
Cca -s1a, d1, a1 (according to cross-section)
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: -0°C
Fire performance
Flame non-propagation according to EN 60332-1, IEC 60332-1.
Fire non-propagation according to EN 60332-3, IEC 60332-3 and EN 50399.
LSZF (Low Smoke Zero Halogen) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Reaction to fire CPR B2ca -s1a, d1, a1 or Cca -s1a, d1, a1 according to 50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Acceptable.
UV resistant according to EN 50618.
Water performance
Water resistance: AD8 Submersion.
Other
Meter by meter marking.
Installation conditions
Open air. Buried.
In conduit.
Applications
Industrial use.
Public places.

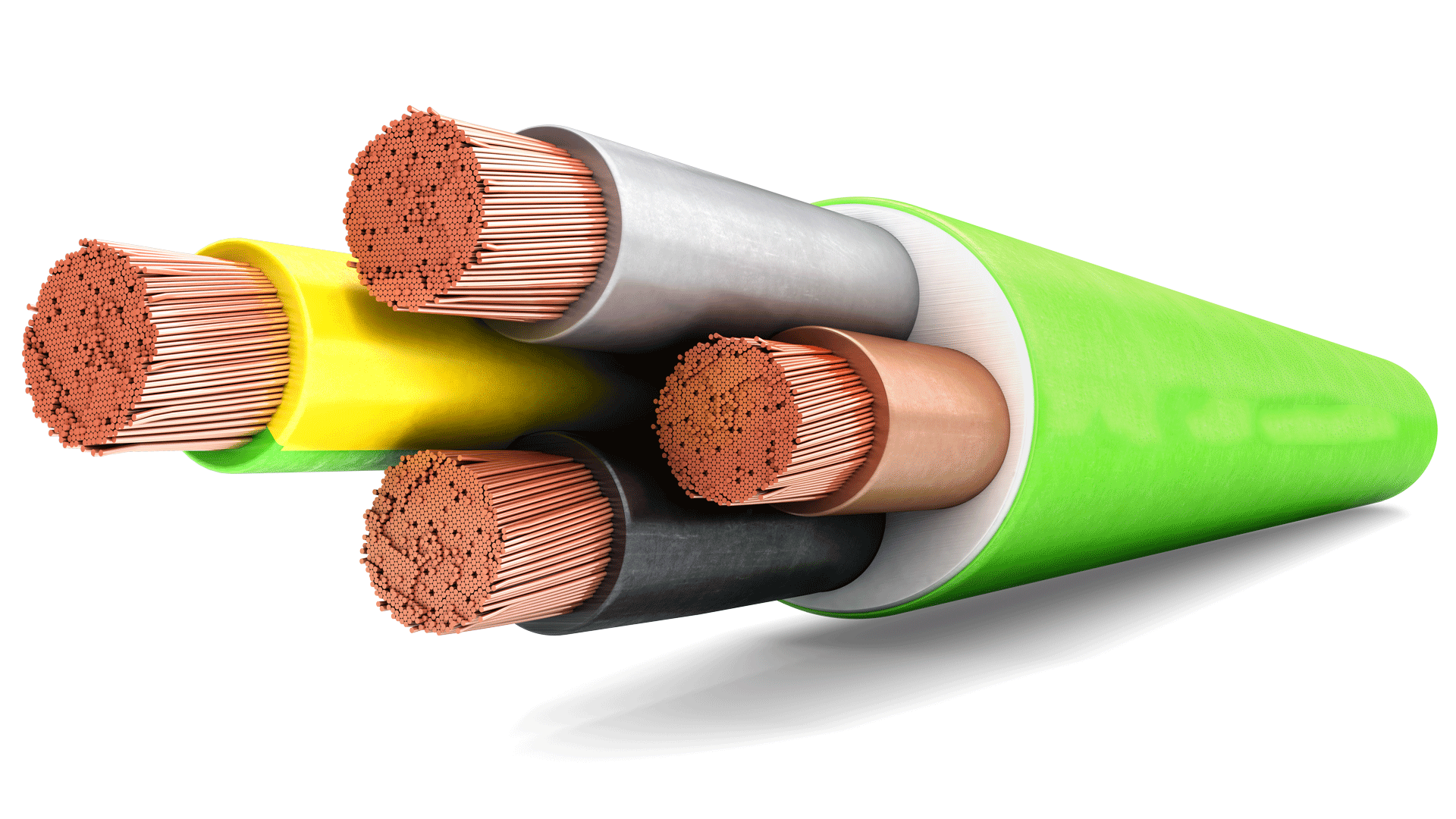

TOXFREE ZH FR-N1 X1G1 cable design
Conductor
Electrolytic annealed copper, class 5 (flexible) according to EN 60228 and IEC 60228.
Insulation
Cross-linked polyethylene type XLPE according to IEC 60502-1 and type DIX-3 according to HD 603.
The standard identification of insulated conductors according to HD 308is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Green/Yellow
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
4 G Brown + Black + Grey + Green/Yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/Yellow
Outer sheath
Low smoke halogen free polyolefin, type ST8 according to IEC 60502-1.
Green colour.
LOW VOLTAGE 0,6/1kV
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
AENOR
B2ca s1a, d1, a1 - Cca s1a, d1,a1
Minimum bending radius: x5 cable diameter.
NF C 32-323
✔ Chemical & Oil resistance: Acceptable.
✔ LOW VOLTAGE 0,6/1kV
✔ Fire non-propagation based on UNE-EN 60332-3 and IEC 60332-3.
✔ Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
✔ Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
✔ temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Minimum service temperature: 0ºC.
✔ Water resistance: AD5 Jets.
✔ AENOR
✔ CE
✔ KEMA KEUR
✔ NF-USE
✔ RoHS
✔ UKCA
✔ Industrial use.
✔ Public places.
✔ B2ca s1a, d1, a1 & Cca s1a, d1, a1
✔ EN 60228 / IEC 60228
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Meter by meter marking.
1. Conductor
Electrolytic copper, class 1 (FR-N1 X1G1-U) or class 2 (FR-N1 X1G1-R), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE) according to IEC 60502-1 and type DIX-3 according to HD 603.
The standard identification of insulated conductors according to HD 308is the following:
1x Natural
2x Blue + Brown
3G Blue + Brown + Green/yellow
3x Brown + Black + Grey + Blue (reduced cross-section)
4G Brown + Black + Grey + Green/yellow
4x Brown + Black + Grey + Blue
5G Brown + Black + Grey + Blue + Green/yellow
3. Outer sheath
Low Smoke Zero Halogen (LSZH) polyolefin. Green color.
