X-VOLT® FR-N20X48E-AR Medium Voltage aluminium cable for the electricity transmission and distribution. Halogen free.

X-VOLT® FR-N20X48E-AR 12/20 kV

Electrical performance

MEDIUM VOLTAGE: 12/20 (24) kV.

                                         18/30 (36)kV.

Based on

NF C 33-226.

Construction Product Regulation

Eca

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -15ºC

Fire performance

Flame non-propagation according to NF C 32-070 c2.

Reaction to fire CPR: Eca according to EN 50575.

Mechanical performance

Minimum bending radius: x13 cable diameter.

Impact resistance: AG4 Extra High Severity (≤ 20J).

Chemical performance

UV Resistant according to NF EN 50483.

Water performance

Water Resistance: AD8 Submersion.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Distribution networks.

Other

Meter by meter marking.

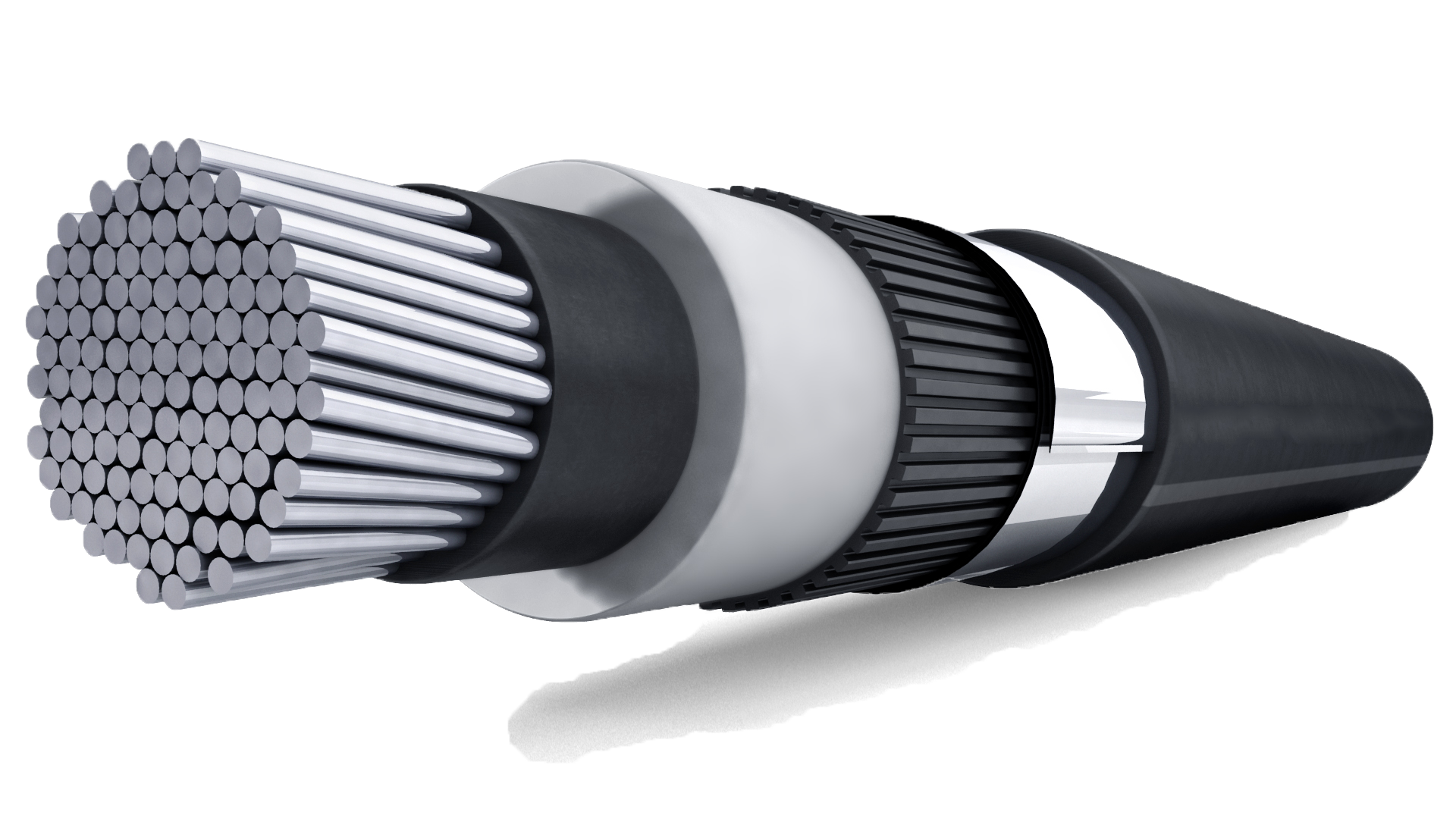

X-VOLT® FR-N20X48E-AR 12/20 kV

Conductor

Aluminium conductor, class 2, according to NF-EN 60228 and IEC 60228.

Internal semiconductor

Screen over the conductor, made of thermosetting semiconductor material.

Insulation

Cross-linked polyethylene (XLPE).

External semiconductor

Screen over the insulation, made of thermosetting and strippable semiconductor material.

Longitudinal sealing

Swelling powder.

Metallic screen

Longitudinal aluminium foil with polymer laminate bonded to the outer sheath.

Outer sheath

Polyolefin outer sheath, black color.
