Flexible EMC LSZH screened cable for Variable Frequency Drive motors (VFD cables) and installation on ships and vessels.

TOPDRIVE VFD (EMC) ROZ1-K (AS) 0,6/1kV cable has been specially designed for Variable Frequency Drive Motors and installations where it is necessary to limit the effects of electromagnetic interference (EMI). This is a flexible cable for fixed installations, for variable speed motors or pumps.

TOPDRIVE VFD (EMC) ROZ1-K (AS) cable performance

Electrical performance

LOW VOLTAGE 0,6/1 kV

Standard

IEC 60502-1 / IEC 60092-353

Approvals

BUREAU VERITAS / DNV-GL / ABS / LLOYD'S REGISTER / RoHS / CE / UKCA

CPR Construction Product Regulation

Cca - s1a, d1, a1

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3/IEC 60332-3 and EN 50399.

Reaction to fire CPR: Cca - s1a, d1, a1 , according to EN 50575.

LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034.

Light transmittance > 80%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Mechanical performance

Minimum bending radius: x10 cable diameter.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Acceptable.

UV resistant based on EN 50618.

Water resistance: AD5 Jets.

Other

Meter by meter marking.

Ripcord.

Electric fields resistant.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

Variable Frequency Drive (VFD).

Electromagnetic protection.

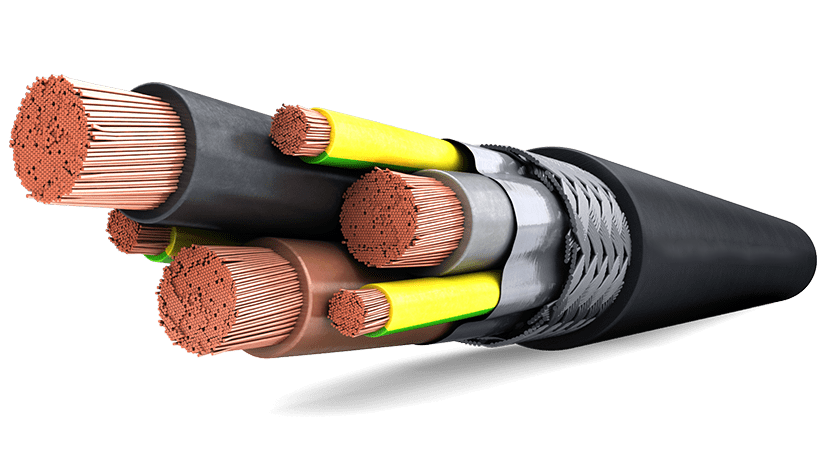

TOPDRIVE® VFD (EMC) ROZ1-K (AS) cable design

Conductor

Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.

Protective Conductor

The ground conductor is divided into three conductors; the equivalent cross-section is approximately 50% of the section of the phase conductor. For 4G cables, ground conductor has the same cross-section as the phase conductors.

Insulation

Cross-linked polyethylene type HF XLPE 90ºC according to IEC 60092-360. The standard identification of insulated conductors is the following:

3 x + 3 G Grey + Brown + Black +Green/yellow (3 G) (from 6mm2 onwards)

4 G Grey + Brown + Black + Green/yellow (up to 4 mm2)

Assembly of cores

For 3 x + 3 G cables, the three phase conductors are cabled helically with the three protective conductors distributed in the interstices. For 4 G cables, the three phase conductors and protection conductor are cabled helically.

Screen

Aluminium-polyester tape screen, helically placed over the insulated conductors. Over the tape there is a tinned copper braid screen. The tape and the braid act as a double screen to cut out all of the electromagnetic interference, with a minimum total section of 10% of the phase conductor, ensuring a total shielding coverage.

Outer sheath

Polyolefin LSHF outer sheath type SHF1 according to IEC 60092-360. black color. The ripcord allows you to tear the outer sheath without damaging the screen.

LOW VOLTAGE 0.6/1 KV

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Maximum service temperature: 90ºC.

Industrial use / Variable Frequency Drive (VFD) / Electromagnetic protection.

BUREAU VERITAS / DNV-GL / ABS / LLOYD'S REGISTER / RoHS / CE / UKCA

IEC 60502-1

Cca -s1a, d1, a1

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.
✔ UV Resistant according to EN 50618.
✔ Water resistance: AD5 Jets.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0.6/1 KV

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
✔ Reaction to fire CPR: Cca-s1a, d1, a1, based on EN 50575.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x10 cable diameter.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)

APPROVALS

✔ ABS
✔ BUREAU VERITAS
✔ CE
✔ DNV-GL
✔ Lloyd’s Register
✔ RoHS
✔ UKCA

APPLICATIONS

✔ Industrial use.
✔ Variable Frequency Drive (VFD)

BASED ON

✔ IEC 60092-353
✔ IEC 60502-1

INSTALLATION CONDITIONS

✔ Buried.
✔ In conduit.
✔ Open Air.

CONSTRUCTION PRODUCT REGULATION

✔ Cca s1a, d1, a1

OTHERS

✔ Electric fields resistant.
✔ Meter by meter marking.
✔ Ripcord.

National norm / European:

✔ EN 60332-1 / EN 60332-3

International norm

✔ IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034

Technology

1. Conductor

Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.

2. Protective Conductor

3. Insulation

Cross-linked polyethylene type HF XLPE 90ºC according to IEC 60092-360. The standard identification of insulated conductors is the following:

3 x + 3 G Grey + Brown + Black + Green/yellow (3 G) (from 6 mm2 onwards)

4 G Grey + Brown + Black + Green/yellow (up to 4 mm2)

4. Assembly of cores

For 3x+3G cables, the three phase conductors are cabled helically with the three protective conductors distributed in the interstices. For 4G cables, the three phase conductors and protection conductor are cabled helically.

4. Screen

5. Outer sheath

Polyolefin LSHF outer sheath type SHF1 according to IEC 60092-360. black color. The ripcord allows you to tear the outer sheath without damaging the screen.
