Aluminium Medium Voltage cable, XLPE insulation, halogen free, hydrocarbon resistant.
X-VOLT RHVhMVh Copper cable for the transmission and distribution of electricity in a medium voltage network. This cable is recommended for installations where there may be a risk of oils and/or hydrocarbon type chemical agents coming into contact with the cable.
X-VOLT RHVhMVh 3x Cu +H1 cable performance
Electrical performance
MEDIUM VOLTAGE: 3,6/6kV, 6/10 kV, 8,7/15 kV, 12/20 kV and 18/30 kV.
Standard
IEC 60502-2 / Repsol ED-P-10.01-01.
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC
Fire performance
Flame non-propagation according to EN 60332-1/IEC 60332-1.
Fire non-propagation according to EN 60332-3 / IEC 60332-3.
Reduced halogen emission. Chlorine < 15%.
Mechanical performance
Minimum bending radius: x15 cable diameter.
Abrasion resistant.
Tear resistant.
Chemical performance
Chemical resistance: Excellent.
Oil resistant: according to UIC 895 OR.
Hydrocarbon resistant: according to UIC 895 OR.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Distribution networks.
Other
Meter by meter marking.

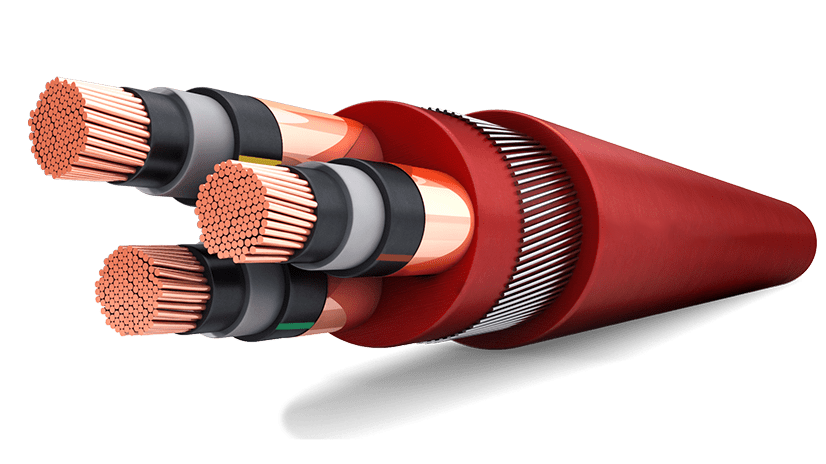

X-VOLT RHVhMVh 3x Cu +H1 cable design
Conductor
Electrolytic annealed copper, class 2, based on EN 60228 and IEC 60228.
Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
Cross-linked polyethylene (XLPE) according to IEC 60502-2, in dry atmosphere catenary tube, through a triple layer extrusion process.
External semiconductor
Screen over the insulation, made of thermosetting and strippable semiconductor material.
Cable conductor identification
The conductors are identified with a tape placed along the cable between the external semiconductor and the metallic screen. Colors are; brown, green and yellow.
Metallic screen
Screen of copper tape. It consists in two copper tapes of 0,1 mm of thickness placed helicoidally and overlapped (H1 screen) over the outer semi-conducting screen.
Cabling
The three conductors are wound helicoidally with their screens in contact.
Bedding
The special PVC compound bedding gives a high level of resistance to hydrocarbons and mineral oils.
7. Armour
Galvanized steel wire wrapped helicoidally around the cable and fixed with a counter-wound metal tape.
8. Outer sheath
The special PVC outer sheath compound gives a high level of resistance to hydrocarbons and mineral oils. Red color.
MEDIUM VOLTAGE 3,6/6 kV - 6/10 kV. 8,7/15 kV.- 12/20 kV – 18/30 kV
Flame non-propagation according to EN 60332-1 / IEC 60332-1.
Maximum service temperature: 90ºC.
Distribution networks.
IEC 60502-2 / Repsol ED-P-10.01-01.
✔ Abrasion resistant.
✔ Minimum bending radius: x15 cable diameter.
✔ Tear resistant.
✔ Chemical resistance: Excellent
✔ Hydrocarbon resistant: based on UIC 895 OR.
✔ Oil resistant: based on UIC 895 OR.
✔ MEDIUM VOLTAGE 3,6/6 kV – 6/10 kV.
✔ 8,7/15 kV.- 12/20 kV – 18/30 kV
✔ Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission: cables up to 6/10 kV: < 15%.
✔ Reduced halogen emission. Chlorine <15%.
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
✔ temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -15ºC
✔ Distribution networks.
✔ IEC 60502-2 /Repsol ED-P-10.01-01.
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Meter by meter marking.
1. Conductor
Electrolytic annealed copper, class 2, based on EN 60228 and IEC 60228.
2. Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
3. Insulation
Cross-linked polyethylene (XLPE), in dry atmosphere catenary tube, through a triple layer extrusion process.
4. External semiconductor
Screen over the insulation, made of thermosetting and strippable semiconductor material.
5. Cable conductor identification
The conductors are identified with a tape placed along the cable between the outer semiconductor and the metallic screen. Colors are; brown, green and yellow.
6. Metallic screen
Screen of copper wires and cross-wound of copper tape placed helicoidally. (H1 screen).
7. Cabling
The three conductors are wound helicoidally with their screens in contact. A bedding is used to fill the spaces between the conductors to achieve a better cylindrical finish to the cable.
8. Bedding
The special PVC compound bedding gives a high level of resistance to hydrocarbons and mineral oils.
9. Armour
Galvanized steel wire wrapped helicoidally around the cable and fixed with a counter-wound metal tape.
10. Outer sheath
The special PVC outer sheath compound gives a high level of resistance to hydrocarbons and mineral oils. Red color.
