Flexible cable, for submarine and shipboard use

XTREM® DN-F is a flexible cable for marine mobile heavy duty, for installations on ships and vessels and for submerged pumps. Suitable for permanent total submerged installations (AD8) and drinking water wells, and has few international approvals for drinking water safety.

XTREM DN-F cable performance
Electrical performance

LOW VOLTAGE 0,6/1kV; 1,8/3Kv

Standard

UNE 21150

Approvals

CE / RoHS

Construction Products Regulation (CPR)

Eca

Thermal performance

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations) and -25ºC (mobile use)

Fire performance

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Reaction to fire CPR: Eca , according to EN 50575.

Mechanical performance

Minimum bending radius: 3 x cable diameter < 12 mm.

4 x cable diameter ≥ 12 mm.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Excellent.

Grease & mineral oils resistance: Excellent.

Water performance

Water resistance: AD8 Submersion.

Submersible pumps.

In drinkable water according to AS/NZS 4020.

Deep wells.

Drinkable water.

AWQC.
Other

Meter by meter marking.

Installation conditions

Open Air.

Submersibles pumps cable.
Applications

Submarine installation

Shipboard installation

Water submarine pumps

Packaging

Available in rolls of 100 m  and drums.

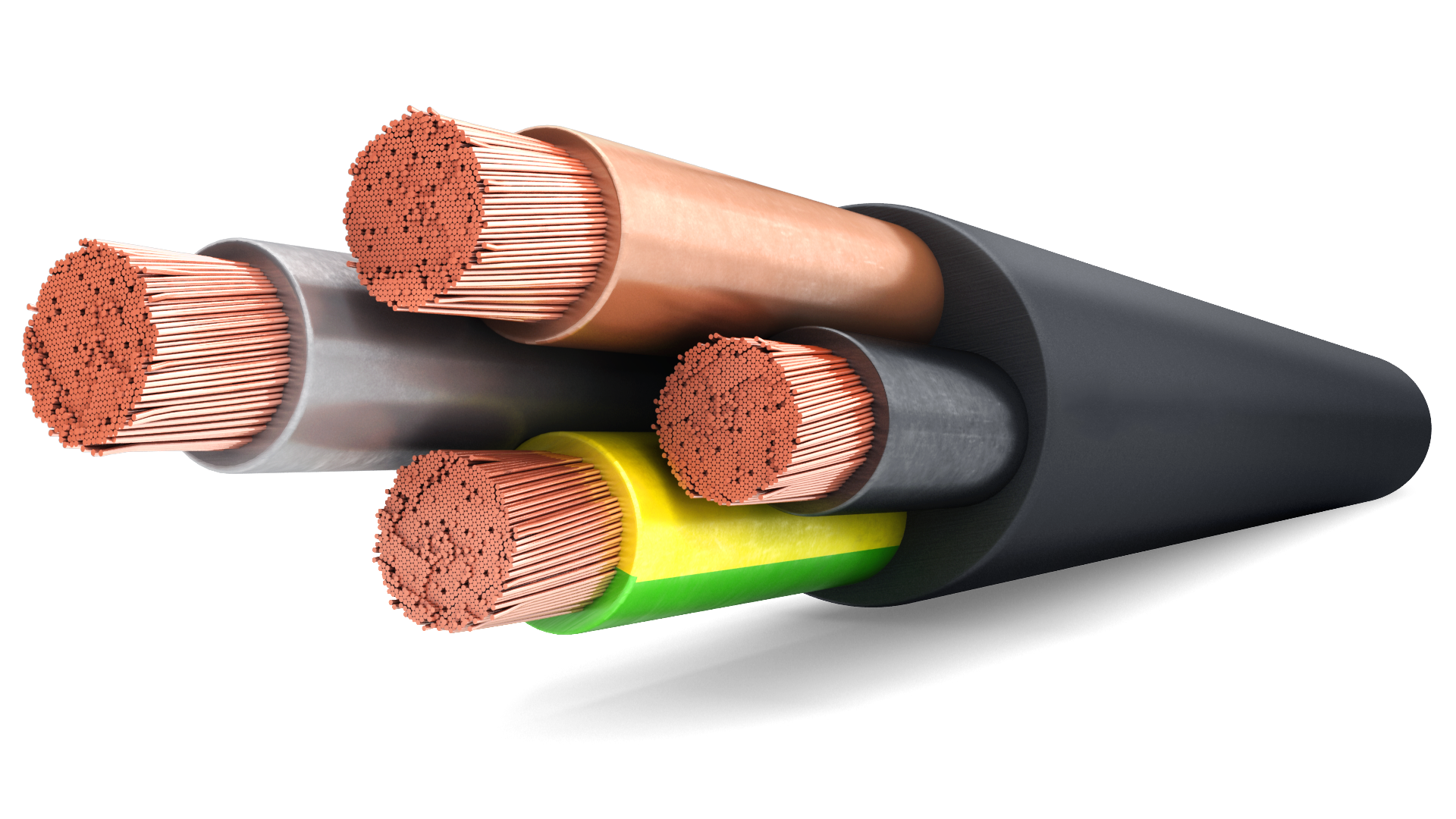

XTREM DN-F cable design
Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Rubber (type EPR)

The standard identification according to HD 308 is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Yellow/green

3x Brown + Black + Grey
4 G Brown + Black + Grey + Yellow/green

4x Brown + Black + Grey + Blue
5 G Brown + Negro + Grey + Blue + Yellow/green

6 or more Black numbered + Green/Yelow Outer sheath Flexible rubber. Black color

Flame non-propagation based on EN 60332-1 and IEC 60332-1. Reaction to fire CPR: Eca , according to EN 50575.

Marine use

Chemical & Oil resistance: Excellent.

Eca

Submersible pumps cable

IEC 60332-1 / IEC 60332-3

CHEMICAL PERFORMANCE

✔ Chemical & Oil resistance: Excellent.
✔ Grease & mineral oils resistance: Excelent.

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV
✔ LOW VOLTAGE 1,8/3kV

APPROVALS

✔ CE
✔ RoHS

CONSTRUCTION PRODUCT REGULATION

✔ Eca

International norm

✔ IEC 60332-1

APPLICATIONS

✔ Marine use

OTHERS

✔ Meter by meter marking.

INSTALLATION CONDITIONS

✔ Open Air.
✔ Submersible pumps cable

Technology

1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Rubber (type EPR)
The standard identification of insulated conductors is the following:
1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Yellow/green

3x Brown + Black + Grey

4 G Brown + Black + Grey + Yellow/green

4x Brown + Black + Grey + Blue

5 G Brown + Negro + Grey + Blue + Yellow/green

6 or more Black numbered + Green/Yelow

3. Outer sheath
Flexible Rubber. Black color.
