Medium Voltage aluminium cable, XLPE insulation, halogen free.
X-VOLT® FR-N20X48E-AR Medium Voltage aluminium cable for the electricity transmission and distribution. Halogen free.
X-VOLT® FR-N20X48E-AR 12/20 kV
Electrical performance
MEDIUM VOLTAGE: 12/20 (24) kV.
18/30 (36)kV.
Based on
NF C 33-226.
Construction Product Regulation
Eca
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC
Fire performance
Flame non-propagation according to NF C 32-070 c2.
Reaction to fire CPR: Eca according to EN 50575.
Mechanical performance
Minimum bending radius: x13 cable diameter.
Impact resistance: AG4 Extra High Severity (≤ 20J).
Chemical performance
UV Resistant according to NF EN 50483.
Water performance
Water Resistance: AD8 Submersion.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Distribution networks.
Other
Meter by meter marking.
X-VOLT® FR-N20X48E-AR 12/20 kV
Conductor
Aluminium conductor, class 2, according to NF-EN 60228 and IEC 60228.
Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
Cross-linked polyethylene (XLPE).
External semiconductor
Screen over the insulation, made of thermosetting and strippable semiconductor material.
Longitudinal sealing
Swelling powder.
Metallic screen
Longitudinal aluminium foil with polymer laminate bonded to the outer sheath.
Outer sheath
Polyolefin outer sheath, black color.
Flame non-propagation based on EN NF C 32-070 c2.
Distribution networks
CE, RoHS, EDF
NF C 33-226
UV Resistant based on NF EN 50483
Eca
Water resistance: AD8 submerged.
✔ UV Resistant based on NF EN 50483
✔ MEDIUM VOLTAGE 12/20 kV and 18/30 kV.
✔ Flame non-propagation based on EN NF C 32-070 c2.
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x 13 cable diameter.
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
✔ temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -15ºC
✔ Water presence: AD8 submerged.
✔ Distribution networks.
✔ CE
✔ RoHS
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Eca
✔ Meter by meter marking.

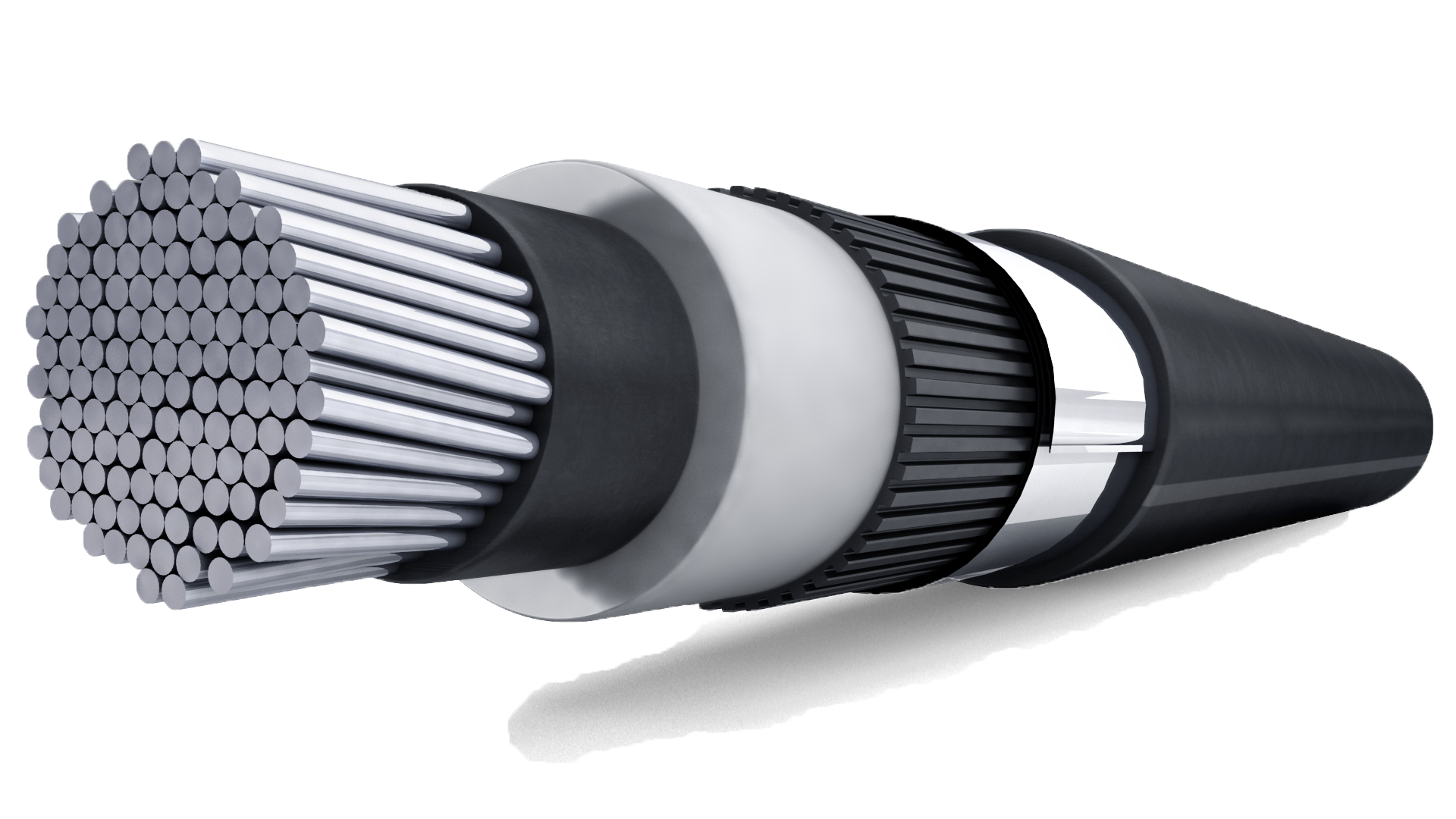

1. Conductor
Aluminium conductor, class 2, based on NF-EN 60228 and IEC 60228.
2. Internal semiconductor
Screen over the conductor, made of thermosetting semiconductor material.
3. Insulation
Cross-linked polyethylene (XLPE).
4. External semiconductor
Screen over the insulation, made of thermosetting and strippable semiconductor material.
5. Longitudinal sealing
Swelling powder.
6. Metallic screen
Longitudinal aluminium foil with polymer laminate bonded to the outer sheath.
7. Outer sheath
Polyolefin outer sheath, black color.
