TOPDRIVE VFD (EMC) ROZ1-K(AS)0,6/1kV cable for marine installation

TOPDRIVE VFD (EMC) ROZ1-K (AS) 0,6/1kV and 1,8/3kV cable for marine installation has been designed for installation on ships and vessels' machine rooms, where VFD Motors are located. This is a flexible cable for fixed installations, for variable speed motors or pumps. The cable is designed according to the toughest requirements of IEC60092-350 and IEC60092-353 standards for shipboard applications.

TOPDRIVE VFD (EMC) ROZ1-K (AS) cable performance
Electrical performance

LOW VOLTAGE  0,6/1 kV (also available at 1,8/3kV)

Standard

IEC 60092-353

Approvals

BUREAU VERITAS / DNV-GL / ABS / LLOYD'S REGISTER / RoHS / CE / UKCA

CPR Construction Product Regulation

Cca - s1a, d1, a1

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3/IEC 60332-3 and EN 50399.

Reaction to fire CPR: Cca - s1a, d1, a1 , according to EN 50575.

LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034.

Light transmittance > 80%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Mechanical performance

Minimum bending radius: x10 cable diameter.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Acceptable.

UV resistant based on EN 50618.

Water resistance: AD5 Jets.

Other

Meter by meter marking.

Ripcord.

Electric fields resistant.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Shipboard installation. Installation on vessels. Electromagnetic protection.
Variable Frequency Drive (VFD).

Electromagnetic protection.

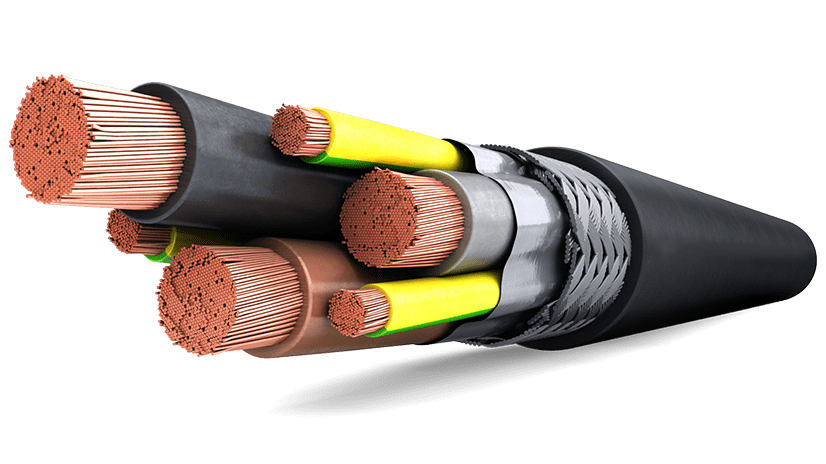

TOPDRIVE® VFD (EMC) ROZ1-K (AS) for marine installations cable design
Conductor

Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.

Protective Conductor

The ground conductor is divided into three conductors; the equivalent cross-section is approximately 50% of the section of the phase conductor. For 4G cables, ground conductor has the same cross-section as the phase conductors.

Insulation

Cross-linked polyethylene type HF XLPE 90ºC according to IEC 60092-360. The standard identification of insulated conductors is the following:

3 x + 3 G Grey + Brown + Black +Green/yellow (3 G) (from 6mm2 onwards)

4 G  Grey + Brown + Black + Green/yellow (up to 4 mm2)

Assembly of cores

For 3 x + 3 G cables, the three phase conductors are cabled helically with the three protective conductors distributed in the interstices. For 4 G cables, the three phase conductors and protection conductor are cabled helically.

Screen

Aluminium-polyester tape screen, helically placed over the insulated conductors. Over the tape there is a tinned copper braid screen. The tape and the braid act as a double screen to cut out all of the electromagnetic interference, with a minimum total section of 10% of the phase conductor, ensuring a total shielding coverage.

Outer sheath

Polyolefin LSHF outer sheath type SHF1 according to IEC 60092-360. black color. The ripcord allows you to tear the outer sheath without damaging the screen.

Marine use / Shipboard installation / Installation on vessels

BUREAU VERITAS / DNV-GL / ABS / LLOYD'S REGISTER / RoHS / CE / UKCA

IEC 60092-353

Cca s1a, d1,a1

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.
✔ UV Resistant according to EN 50618.
✔ Water resistance: AD5 Jets.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x10 cable diameter.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV
✔ LOW VOLTAGE 1,8/3kV

APPROVALS

✔ ABS
✔ BUREAU VERITAS
✔ CE
✔ DNV-GL
✔ Lloyd’s Register
✔ RoHS
✔ UKCA

INSTALLATION CONDITIONS

✔ Buried.
✔ In conduit.
✔ Open Air.

CONSTRUCTION PRODUCT REGULATION

✔ Cca s1a, d1, a1

BASED ON

✔ IEC 60092-353

APPLICATIONS

✔ Marine use
✔ Variable Frequency Drive (VFD)

Technology


1. Conductor
Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.

2. Protective Conductor
The ground conductor is divided into three conductors; the equivalent cross-section is approximately 50% of the section of the phase conductor. For 4G cables, ground conductor has the same cross-section as the phase conductors.

3. Insulation
Cross-linked polyethylene type HF XLPE 90ºC according to IEC 60092-360. The standard identification of insulated conductors is the following:
3 x + 3 G Grey + Brown + Black +Green/yellow (3 G) (from 6mm2 onwards)
4 G Grey + Brown + Black + Green/yellow (up to 4 mm2)

4. Assembly of cores
For 3x+3G cables, the three phase conductors are cabled helically with the three protective conductors distributed in the interstices. For 4G cables, the three phase conductors and protection conductor are cabled helically.

4. Screen
Aluminium-polyester tape screen, helically placed over the insulated conductors. Over the tape there is a tinned copper braid screen. The tape and the braid act as a double screen to cut out all of the electromagnetic interference, with a minimum total section of 10% of the phase conductor, ensuring a total shielding coverage.

5. Outer sheath
Polyolefin LSHF outer sheath type SHF1 according to IEC 60092-360. black color. The ripcord allows you to tear the outer sheath without damaging the screen.
