TOXFREE MARINE XOxTCuZ1-K (AS) (x:1…3)_MARINE CABLES_Products

The Marine armoured and fire resistant instrumentation cable

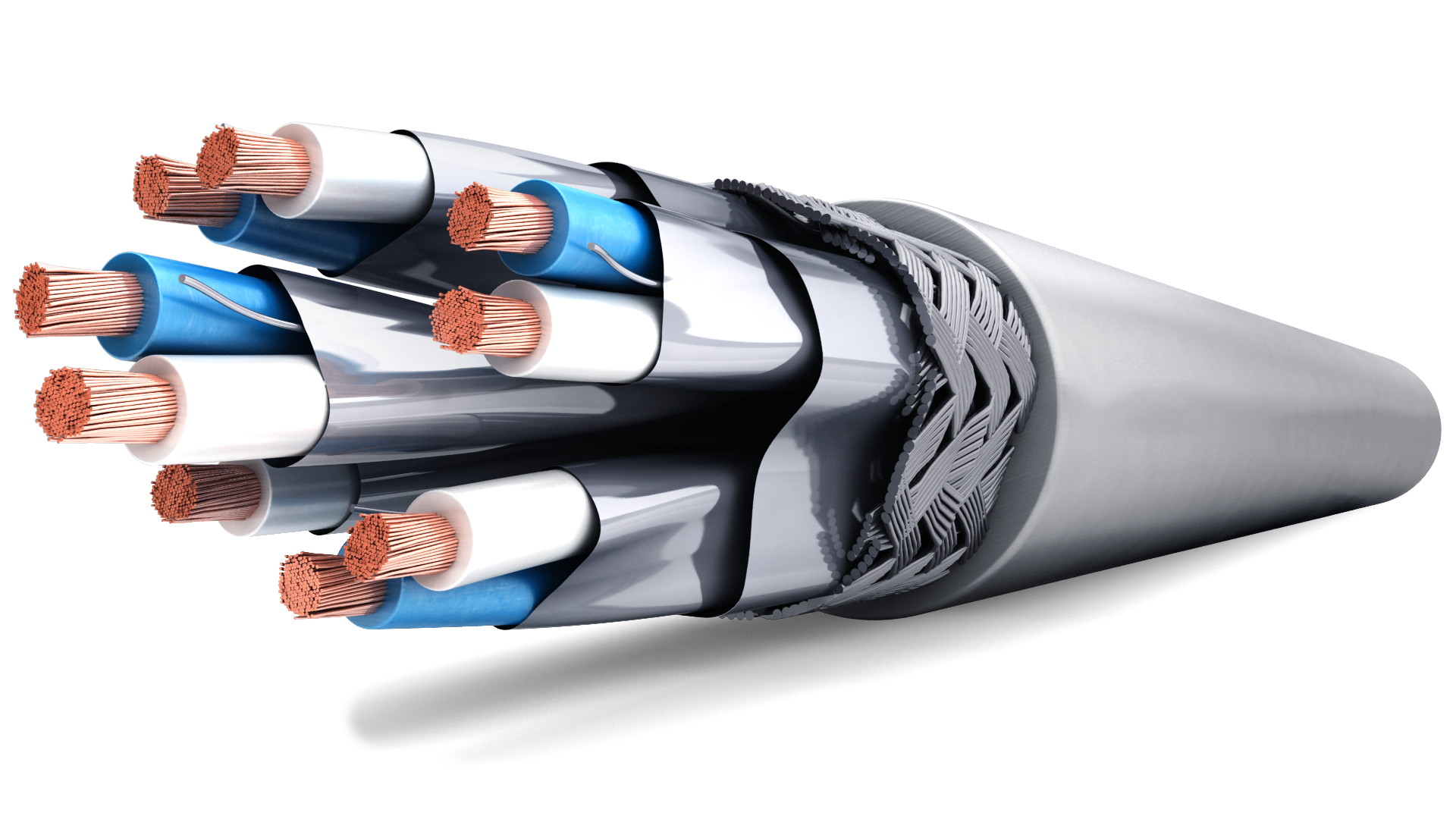

The Toxfree Marine XOxTCuZ1-K (AS) cable with zero halogens is a safety instrumentation and telecomunication cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in marine applications.

TOXFREE MARINE XOxTCuZ1-K (AS) (x:1...3) cable performance

Electrical performance

INSTRUMENTATION 150/250V

Standards

IEC 60092-376

Approvals

DNV-GL ABS

BUREAU VERITAS

RoHS

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed installations).

Lowest installation temperature: -15°C

Fire performance

Flame non-propagation according to IEC 60332-1.

Fire non-propagation according to IEC 60332-3-22. LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.

Mechanical performance

Minimum bending radius:

Ø ≤ 25mm 4x cable diameter. Ø > 25mm 6x cable diameter.

Impact resistance: AG3 High severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

UV Resistant according to EN 50618.

Water performance

Water resistance: AD6 waves.

Other

Meter by meter marking.

Installation conditions

Open Air.

In Conduit.

On a Bulkhead.

Applications

Marine use.

TOXFREE MARINE PLUS XTCuZ1-K (AS) cable design

Conductor

Electrolytic annealed copper, class 5 (flexible), according to IEC 60228.

Insulation

HF XLPE 90ºC.

The standard identification is the following per pair:

White + Blue

Other color available on request.

Screen

Individual and/or collective aluminium/polyester tape with tinned copper drain wire. O1.....Individual screen (per pair) O2.....Overall screen (per cable) O3.....Individual and overall screen.

Armour Bedding

Polyester tape.

Armour

Tinned copper braid screen.

Outer sheath

LSHF polyolefin outer sheath SHF1 type. Grey colour.

INSTRUMENTATION 150/250v

Flame non-propagation according to IEC 60332-1.

Maximum service temperature: 90ºC.

Marine use

IEC 60092-376

MECHANICAL PERFORMANCE

✔ Impact resistance: AG3 High severity
✔ Minimum bending radius: 4x cable diameter (from 25mm onwards). 6x cable diameter (up to 25mm)

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3-22 and IEC 60332-3-22.
✔ Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
✔ Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
✔ Low smoke emission based on UNE-EN 61034 and IEC 61034.: Light transmittance > 60%
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.

ELECTRICAL PERFORMANCE

✔ INSTRUMENTATION 150/250V

THERMAL PERFORMANCE

✔ Lowest installation temperature: -15ºC
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
