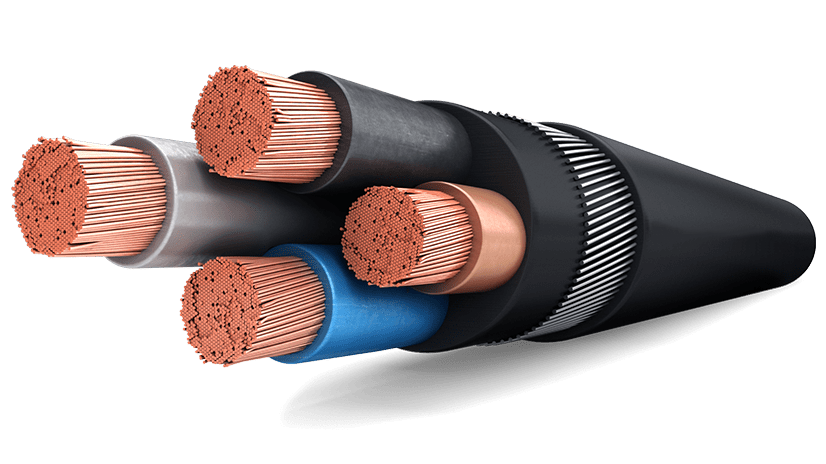

Galvanized steel wire armour cable.
POWERHARD M RVhMVh-K AWA/SWA cable can also be used in installations such as production plants, agricultural facilities, street lighting and installations in general where the cable is subject to high mechanical aggression.
This cable is also available in hydrocarbon resistant version.
POWERHARD M RVhMVh-K AWA/SWA cable performance
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1
Approvals
BUREAU VERITAS / CE / RoHS
CPR Construction Products Regulation
Eca
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: 0°C (on cable surface).
Fire performance
Reaction to fire CPR: Eca, according to EN 50575.
Reduced halogen emission. Chlorine <15%.
Mechanical performance
Minimum bending radius: x10 cable diameter.
Impact resistance: AG4 High severity.
Rodent proof.
Environmental performance
Chemical & Oil resistance: Good.
UV Resistant: UNE 211605.
Water resistance: AD7 Immersion.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
POWERHARD M RVhMVh-K AWA/SWA cable design
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Cross-linked polyethylene insulation type DIX-3 according to HD 603 and XLPE according to IEC 60502-1. The standard identification of insulated conductors according to HD 308, is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Green/yellow
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross section)
4 G Brown + Black + Grey + Green/yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/yellow
6 G or more Brown + Black numbered + Green/Yellow
Inner covering
PVC.
Armour
Galvanized steel wire armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable.
Outer sheath
PVC outer sheath type ST2 according to IEC 60502-1. Black color.
LOW VOLTAGE 0,6/1kV
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Maximum service temperature: 90ºC.
EN 60332-1
Industrial use
Eca
✔ Chemical & Oil resistance: Good.
✔ UV Resistant: UNE 211605.
✔ Water resistance: AD7 immersion.
✔ LOW VOLTAGE 0,6/1kV
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.
✔ Impact resistance: AG4 High severity.
✔ Minimum bending radius: x10 cable diameter.
✔ Rodent proof
✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
✔ temperature: 250ºC (max. 5 s).
✔ Minimum installation and handling temperature: 0ºC (on cable surface).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Water resistance: AD7 Immersion
✔ Industrial use.
✔ BUREAU VERITAS
✔ CE
✔ RoHS
✔ IEC 60502-1
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Eca
✔ IEC 60502-1
✔ Meter by meter marking.
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE).
The standard identification of insulated conductors is the following:
1 x natural
2 x Blue + Brown
3 G Blue + Brown + Green/Yellow
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey+ Blue (reduced cross-section)
4 G Brown + Black + Grey + Green/Yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/yellow
6 G or more conductors: Black numbered + Green/Yellow.
3. Inner covering
PVC.
4. Armour
Galvanized steel wire armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable.
5. Outer sheath
PVC outer sheath type ST2 according to IEC 60502-1. Black color.
