Flexible cable, for industrial and marine use.

XTREM DN-F cables is a flexible and rubber cable for mobile heavy duty. Suitable for installations in dry, damp or wet locations, outdoors, for hazardous areas with explosive gas atmospheres, machines in industrial workshops, motors and transportable machines; on construction sites and for agricultural exploitations.

XTREM DN-F cable performance

Electrical performance

LOW VOLTAGE 1,8/3kV

Standard

UNE 21150

Approvals

CE / RoHS

Construction Products Regulation (CPR)

Eca

Thermal performance

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations) and -25ºC (mobile use)

Fire performance

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Reaction to fire CPR: Eca , according to EN 50575.

Mechanical performance

Minimum bending radius: 3 x cable diameter < 12 mm.

4 x cable diameter ≥ 12 mm.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Excellent.

Grease & mineral oils resistance: Excellent.

Water performance

Water resistance: AD8 Submersion.

Submersible pumps.

In drinkable water according to AS/NZS 4020.

Deep wells.

Drinkable water.

AWQC.

Other

Meter by meter marking.

Installation conditions

Open Air.

Submersibles pumps cable.

Applications

Industrial use.

Mobile use.

Robotics.

Wind turbines.

Agricultural exploitations.

Temporary site installations.

Packaging

Available in rolls of 100 m and drums.

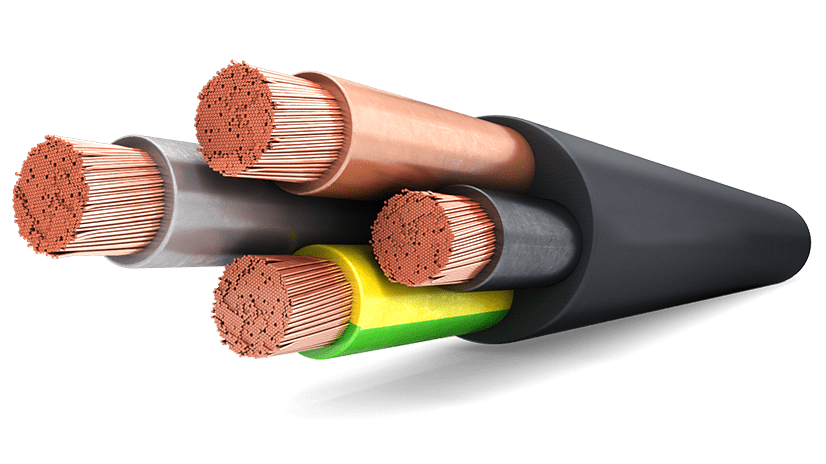

XTREM DN-F cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Rubber (type EPR)

The standard identification according to HD 308 is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Yellow/green

3x Brown + Black + Grey

4 G Brown + Black + Grey + Yellow/green

4x Brown + Black + Grey + Blue

5 G Brown + Negro + Grey + Blue + Yellow/green

6 or more Black numbered + Green/Yelow Outer sheath Flexible rubber. Black color

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1. Reaction to fire CPR: Eca , according to EN 50575.

Eca

Minimum bending radius: 3 x cable diameter 12 mm.

CHEMICAL PERFORMANCE

✔ Chemical & Oil resistance: Excellent.
✔ Grease & mineral oils resistance: Excelente

WATER PERFORMANCE

✔ Deep wells
✔ Drinkable water
✔ Submersible pumps
✔ Water resistance: AD8 Submersion.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 1,8/3kV

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1

MECHANICAL PERFORMANCE

✔ Impact resistance: AG2 Medium severity.

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
✔ temperature: 250ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations) and -25ºC (mobile use)
