Flexible and halogen free (LSZH) power cable for public places.

TOXFREE ZH H07Z-K is a flexible cable for fixed and protected installations. It is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc. Not suitable for wet places or immersed.

TOXFREE ZH H07Z-K cable performance

Electrical performance

Low voltage 300/500 V · 450/750 V.

Rated Voltage: ES05Z1-K/H05Z1-K (up to 1 mm2 ): 300/500 V.

H07Z1-K (from 1,5 mm2 onwards): 450/750 V.

Standard

EN 50525-3-31 / UNE 211002

Approvals

AENOR / HAR / CE / RoHS

CPR Construction Products Regulation

B2ca-s1a, d1, a1

Thermal performance

Maximum conductor temperature: 70ºC.

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation according to EN 60332-3 / IEC 60332-3 and EN 50399.

LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 80%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Reaction to fire CPR B2ca-s1a, d1, a1, according to EN 50575.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Chemical performance

Chemical & Oil resistance: Acceptable.

Other

Meter by meter marking.

Installation conditions

In conduit.

Applications

Domestic use.

Electric panel wiring.

Public places.

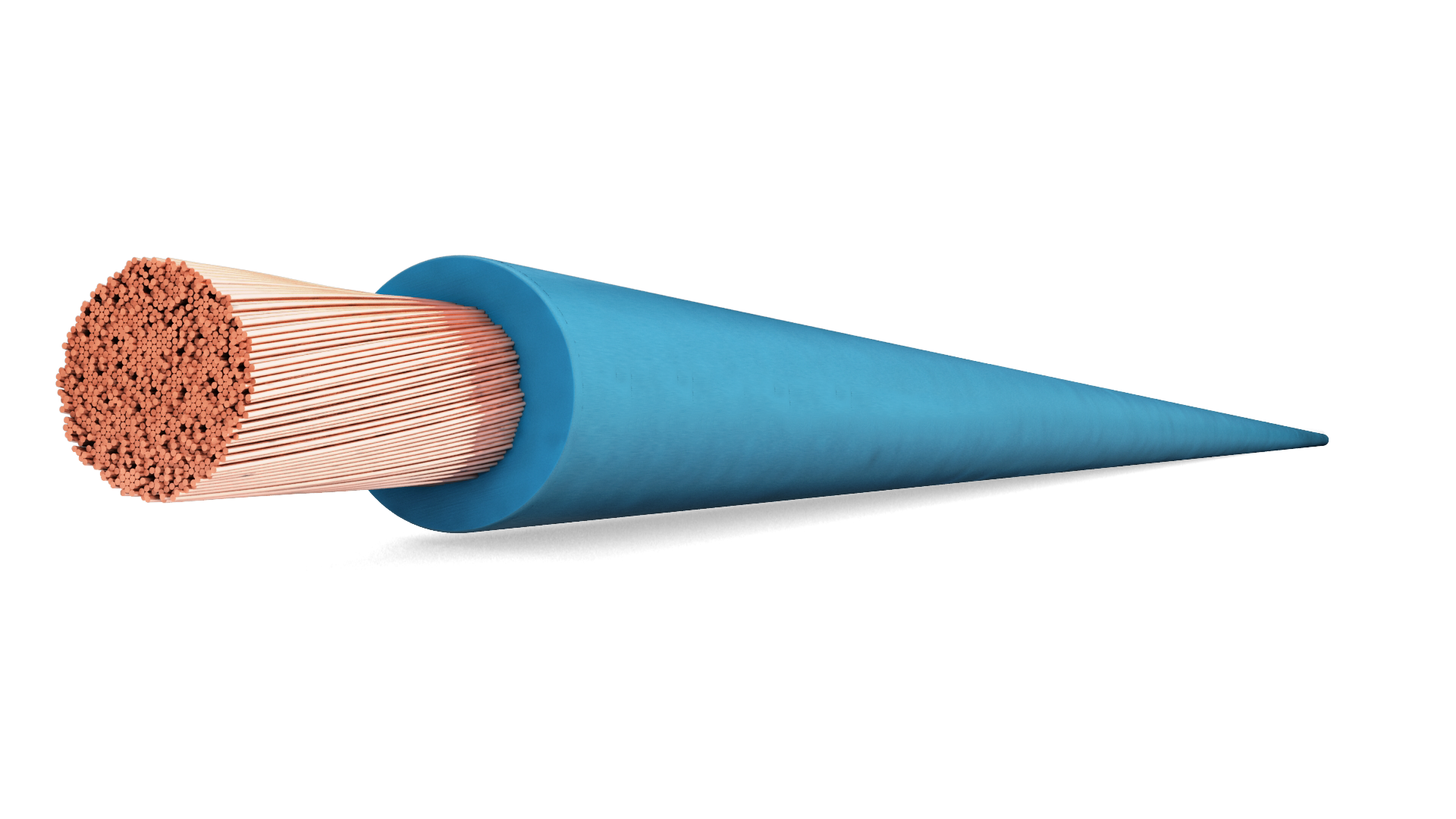

TOXFREE ZH H07Z-K cable design

Conductor

Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

LSZH, type EI5 according to EN 50363-5.

The standard identification of insulated conductors is the following:

Blue RAL 5015

Brown RAL 8003

Black RAL 9005

Red RAL 3000

Green/yellow RAL 6018 / 1021

Gray RAL 7000

White RAL 9010

Other colors available on request.

LOW VOLTAGE 450/750V

Flame non-propagation based on EN 60332-1 and IEC 60332-1

Maximum service temperature: 90ºC.

Domestic use/ Electric panel wiring / Public places

Dca -s1b, d1, a1

In conduit

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ Low smoke halogen free according to IEC 60754-1
✔ Reaction to fire CPR: Dca-s1b, d1, a1 according to EN 50575 (see cross- section).

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 300/500 V
✔ LOW VOLTAGE 450/750 V

THERMAL PERFORMANCE

✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
