TOXFREE ZH ES05Z1-K & H07Z1-K (AS)_PANEL WIRE CABLES_Products

Flexible and halogen free power cable for electrical panel wiring.

TOXFREE ZH ES05Z1-K and H07Z1-K (AS) is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc.

TOXFREE ZH ES05Z1-K and H07Z1-K (AS) cable performance

Electrical performance

LOW VOLTAGE 300/500 V · 450/750 V

RATED VOLTAGE ES05Z1-K/H05Z1-K (up to 1 mm2): 300/500 V · H07Z1-K (from 1,5 mm2 onwards): 450/750 V.

Standard

EN 50525-3-31 / UNE 211002

Approvals

AENOR / HAR / CE / RoHS / UKCA

CPR Construction Products Regulation

B2ca s1a, d1, a1 (cable H07Z1-K)

Thermal performance

Maximum conductor temperature: 70ºC (EN 50525-3-31).

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3 and IEC 60332-3.

LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 80%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Reaction to fire CPR: B2ca s1a, d1, a1 (cable H07Z1-K) , according to EN 50575.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Chemical performance

Chemical & Oil resistance: Acceptable.

Other

Meter by meter marking. (from 10mm2 onwards)

Applications

Domestic use.

Electrical panel wiring.

Public places.

Packaging

Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high-resistant boxes. Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Greater cross sections (>35 mm2) are supplied in drums.

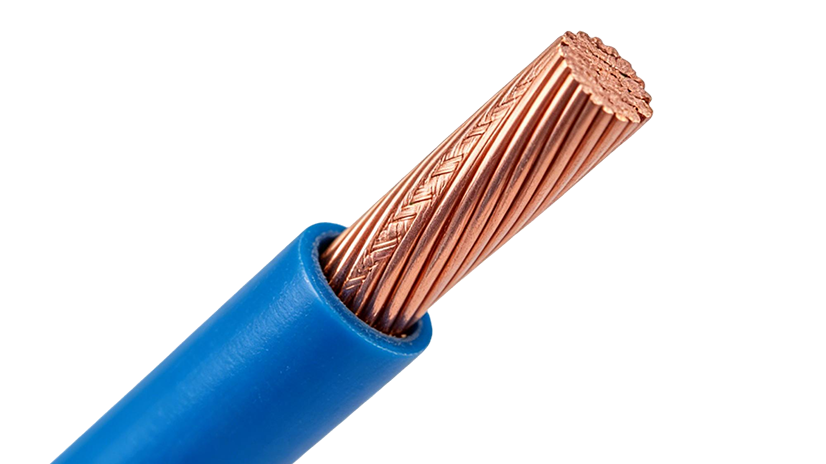

TOXFREE ZH ES05Z1-K and H07Z1-K (A)S cable design

Conductor

Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Polyolefin, halogen free and low smoke under fire conditions, type TIZ1 according to UNE 211002 and type TI7 according to EN 50363-7.

The standard identification of insulated conductors is the following:

Blue RAL 5015 - Brown RAL 8003 - Black RAL 9005 -Red RAL 3000 - Green/yellow RAL 6018 / 1021 - Grey RAL 7000 - Dark blue RAL 5010 - White RAL 9010.

Other colors available on request

LOW VOLTAGE 300/500 V · 450/750 V

Maximum service temperature: 70ºC (EN 50525-3-31).

Domestic use / Electrical panel wiring / Public places

AENOR / HAR / CE / RoHS / UKCA

EN 50525-3-31 / UNE 211002

B2ca s1a, d1, a1 (cable H07Z1-K)

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 300/500 V · 450/750 V
✔ Rated Voltage: H05V-K (up to 1 mm2): 300/500 V.
H07V-K (from 1,5 mm2 onwards): 450/750 V.

FIRE PERFORMANCE

✔ Fire non-propagation based on EN 60332-3-22 and IEC 60332-3-22.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low corrosive gases emission according to IEC 60754-2
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ Low smoke halogen free according to IEC 60754-1
✔ Reaction to fire CPR: B2ca-s1a, d1, a1 according to EN 50575.

THERMAL PERFORMANCE

Maximum service temperature: 70ºC (HD) / 90ºC (UL).
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)

MECHANICAL PERFORMANCE

✔ Minimum bending radius: x5 cable diameter.

APPROVALS

✔ AENOR
✔ CE
✔ HAR
✔ RoHS
✔ UKCA

APPLICATIONS

✔ Domestic use.
✔ Electrical panel wiring.
✔ Public places.

CONSTRUCTION PRODUCT REGULATION

✔ B2ca s1a, d1, a1

National norm / European:

✔ EN 60332-1 / EN 60332-3

International norm

✔ IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034

INSTALLATION CONDITIONS

✔ In conduit.

OTHERS

✔ Meter by meter marking. (from 10mm2 onwards)

PACKAGING

✔ Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high-resistant boxes. Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Greater cross sections (>35 mm2) are supplied in drums.
