Electric cabinet wiring and domestic use.

TOPFLEX V-K H05V-K and H07V-K cable has been specially designed for installations that require a flexible cable due to the complex nature of their layout. This cable is specially suitable for domestic wiring. It may also be used for equipment wiring, distributors, cabinets and lighting. It is also recommended for installation under false ceilings. Cables with cross section up to 1 mm2 are especially suited for signalling and monitoring installations.

TOPFLEX V-K H05V-K and H07V-K cable performance

Electrical performance

LOW VOLTAGE 300/500 V

RATED VOLTAGE H05V-K (up to 1 mm2): 300/500 V · H07V-K (from 1,5 mm2 onwards): 450/750 V.

Standard

EN 50525-2-31 / IEC 60227-3

Approvals

HAR / AENOR / CE/ RoHS / SEC

CPR Construction Product Regulation

Eca

Thermal performance

Maximum conductor temperature: 70ºC.

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: 5ºC.

Minimum service temperature: -40oC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance

Minimum bending radius: 5 x cable diameter.

Chemical performance

Chemical & Oil resistance: Acceptable.

Other

Meter by meter marking.

Installation conditions

In conduit.

Applications

Mobile use.

Domestic use.

Domestic appliances.

Temporary site installations.

Packaging

Available in rolls (lengths of 50 and 100 m) and drums.

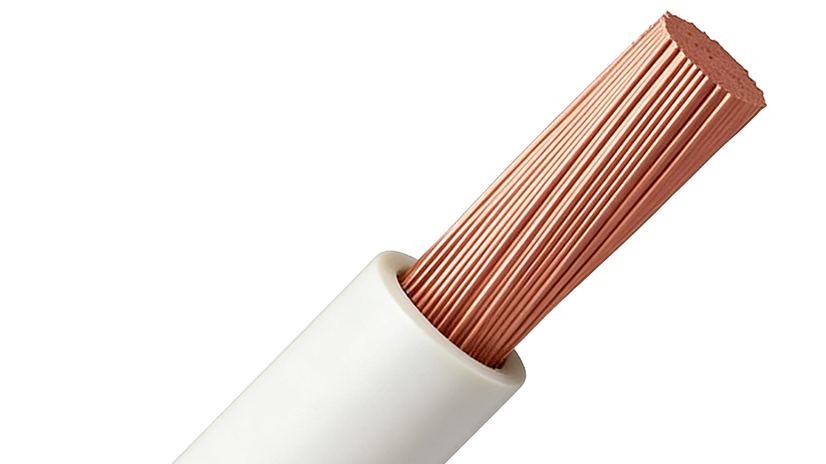

TOPFLEX V-K H05V-K and H07V-K cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Extra sliding flexible polyvinyl chloride type TI1 according to EN 50363-3.

The standard identification of insulated conductors is the following:

Blue RAL 5012 Brown RAL 8003 Black RAL 9005 Red RAL 3000 Green/Yellow RAL 6018/1021 Grey RAL 7000 Dark Blue RAL 5010 White RAL 9010 Orange RAL 2003 Violet RAL 4005 Pink RAL 3015

Other colors available on request.

LOW VOLTAGE 300/500 V · 450/750 V

Flame non-propagation based on EN 60332-1 and IEC 60332-1

Maximum service temperature: 70ºC.

UNE-EN 60332-1

Domestic use / Electrical panel wiring

Eca

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 300/500 V · 450/750 V
✔ Rated Voltage: H05V-K (up to 1 mm2): 300/500 V.
H07V-K (from 1,5 mm2 onwards): 450/750 V.

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.

THERMAL PERFORMANCE

✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum installation and handling temperature: 5ºC.
✔ Minimum service temperature: -40ºC (fixed and protected installations)

MECHANICAL PERFORMANCE

✔ Minimum bending radius: x5 cable diameter.

APPROVALS

✔ AENOR
✔ CE
✔ HAR
✔ RoHS
✔ SEC

APPLICATIONS

✔ Domestic use.
✔ Electrical panel wiring.

BASED ON

✔ EN 50525-2-31 / IEC 60227-3

PACKAGING

✔ Blue 2,5 mm2 100 m
✔ BOX COLOUR GUIDE
✔ Brown 4 mm2 100 m
✔ COLOUR CROSS SECTION LENGHT (M) PER BOX
✔ Green 1 mm2 100 m or 200 m
✔ Grey 6 mm2 100 m
✔ Red 1,5 mm2 100 m or 200 m
✔ Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high resistant colour boxes (see table below). Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Cross sections > 35 mm2 are supplied in drums.
✔ Violet 0,75 mm2 100 m
