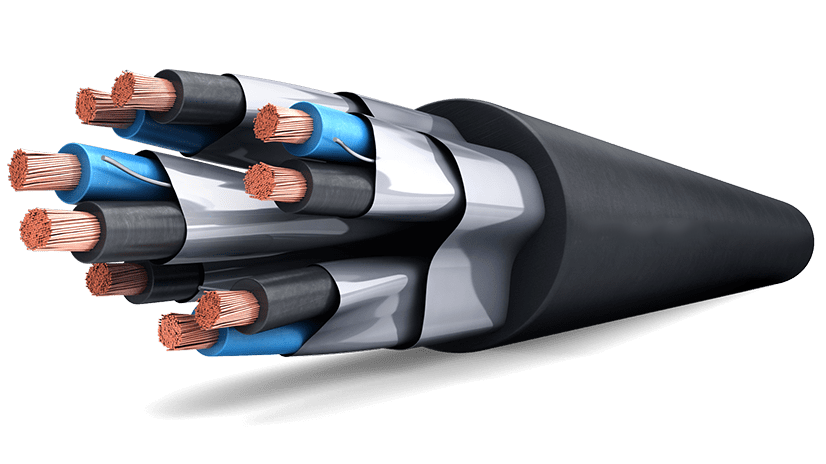

Flexible instrumentation screened cable.
TOPDATA VHOV-K (PAR-POS) and VOV-K (POS) is a flexible screened cable for signalling and control on industrial machinery facilities. The overall screen (VOV-K) and individual and overall screen (VHOV-K) make them especially suitable for areas where electrical noise protection is required.
Electrical performance
LOW VOLTAGE 300/500 V
Standard
EN 50288-7.
Approvals
CE
RoHS
Construction Product Regulation
Eca
Thermal performance
Maximum conductor temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s)
Minimum service temperature: -30ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
Reduced emission of halogens. Chlorine <15%.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Good.
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Ripcord.
Electric fields resistant.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Flexible PVC. The standard identification of insulated conductors is the following:
2x conductors each unit numbered (black + blue)
Other colors available on request
Cabling
Stranded Conductors in pairs.
Individual screen
Individual polyester (per pair) composed by on aluminium / polyester tape with 100% coverage + tinned copper drain wire.
Assembly of cores
Cabled in concentric layers.
Overall Screen
Aluminium / polyester tape with 100% coverage + tinned copper drain wire.
Outer sheath
Flexible PVC sheath, black color. The ripcord allows you to gently tear the outer-sheath and remove it without damaging the screen.
LOW VOLTAGE 300/500 V
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
Maximum service temperature: 70ºC.
Industrial use.
Eca
EN 60228 / IEC 60228
✔ Chemical & Oil resistance: Good.
✔ UV Resistant: UNE 211605.
✔ Water resistance: AD5 Jets.
✔ LOW VOLTAGE 300/500 V
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.
✔ Impact resistance: AG2 Medium severity.
✔ Minimum bending radius: x5 cable diameter.
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -30ºC (fixed and protected installations)
✔ Water resistance: AD5 Jets.
✔ Industrial use.
✔ CE
✔ RoHS
✔ EN 50288-7
✔ Buried.
✔ In conduit.
✔ Open Air.
✔ Eca
✔ Electric fields resistant.
✔ Meter by meter marking.
✔ Ripcord.
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Flexible PVC.
The standard identification of insulated conductors is the following:
2 conductors each unit numbered (black + blue)
Other colours available on request
3. Cabling
Stranded Conductors in pairs.
4. Individual screen
Individual polyester (per pair) composed by on aluminum / polyester tape with 100% coverage + tinned copper drain wire.
5. Assembly of cores
Cabled in concentric layers.
6. Overall Screen
Aluminum / polyester tape with 100% coverage + tinned copper drain wire.
7. Outer sheath
Flexible PVC sheath, black color. The ripcord allows you to gently tear the outer-sheath and remove it without damaging the screen.
