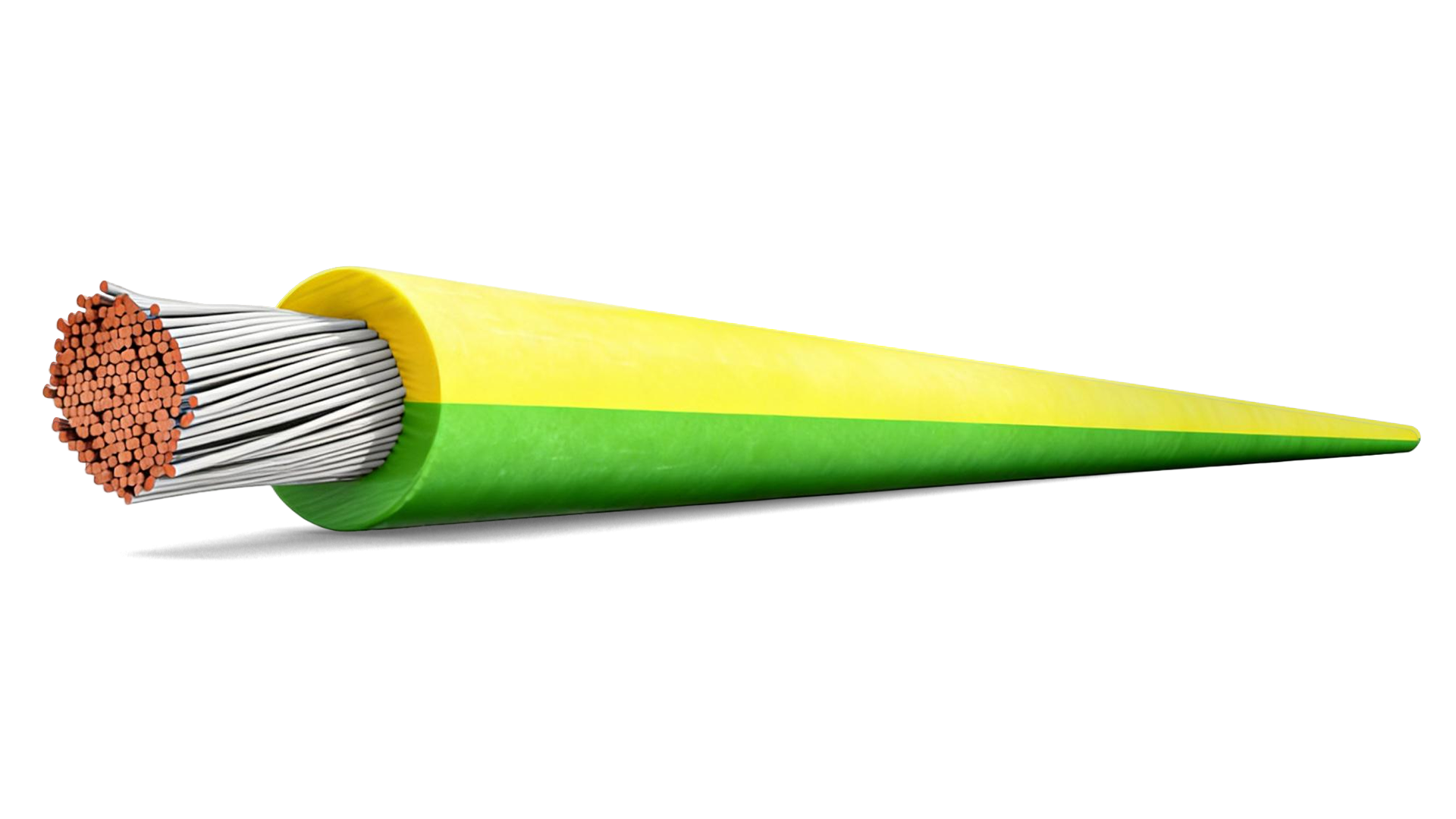

Solar grounding cable, with tinned copper conductor
Electrical performance
LOW VOLTAGE 450/750 V
Standard
EN 50525-3-31 / UNE 211002
Approvals
AENOR / HAR / CE / RoHS / BUREAU VERITAS
CPR Construction Products Regulation
B2ca s1a, d1, a1
Thermal performance
Maximum conductor temperature: 70ºC
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24 and EN 50399.
LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%
Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: B2ca s1a, d1, a1 , according to EN 50575.Mechanical performance
Minimum bending radius: x5 cable diameter.
Chemical performance
Chemical & Oil resistance: Excellent.
Water performance
Water resistance: AD3 Sprays.
Other
Meter by meter marking. (from 10mm2 onwards)
Installation conditions
In conduit.
Packaging
High-resistant boxes and drums.
Conductor
Electrolytic annealed tinned copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
UV resistant polyolefin, type TI7 according to EN 50363-7.
The standard identification of insulated conductors is the following:
Yellow/Green RAL 6018 / 1021
Other colours available on request
LOW VOLTAGE 450/750 V
AENOR, CE, HAR, RoHS, BUREAU VERITAS
B2ca -s1a, d1, a1
Minimum bending radius: x5 cable diameter
Water resistance: AD3 Sprays
✔ Chemical & Oil resistance: Excellent.
✔ LOW VOLTAGE 450/750 V
✔ Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24.
✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
✔ LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
✔ Maximum service temperature: 70ºC.
✔ Maximum short-circuit
temperature: 160ºC (max. 5 s).
✔ Minimum service temperature: -40ºC (fixed and protected installations)
✔ Minimum bending radius: x5 cable diameter.
✔ Water resistance: AD3 Sprays
✔ 1015 0,75-6 mm2 High resistant boxes
✔ AENOR
✔ BUREAU VERITAS
✔ CE
✔ HAR
✔ RoHS
✔ B2ca s1a, d1, a1
✔ EN 50525-3-31
✔ UNE 211002
✔ In conduit.
✔ On tray
✔ Open Air.
✔ Meter by meter marking (from 10 mm2 onwards).
1. Conductor
Electrolytic annealed tinned copper, class 5 (flexible), according to EN 60228 and IEC 60228.
2. Insulation
UV resistant polyolefin, type TI7 according to EN 50363-7.
The standard identification of insulated conductors is the following:
Yellow/green RAL 6018 / 1021
Other colours available on request
