Armoured cable with double steel or aluminium tape armour.

POWERHARD F RVFV-K AST/DST cable is especially suitable for fixed installations that may be subject to mechanical aggression. It is highly recommended for use in installations where the presence of rodents could imply a threat to the cable (such as warehouses, production plants and agricultural facilities). At the same time, its use is recommended for street lighting installations.

POWERHARD F RVFV-K AST/DST cable performance

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60502-1 / UNE 21123-2

Approvals

BUREAU VERITAS / CE / RoHS

CPR Construction Product Regulation

Eca

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum installation and handling temperature: 0ºC.

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance

Minimum bending radius: x10 cable diameter.

Impact resistance: AG4 High severity.

Rodent proof.

Environmental performance

Chemical & Oil resistance: Good

UV Resistant: UNE 211605.

Water resistance: AD7 Immersion.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

POWERHARD F RVFV-K AST/DST cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene insulation type DIX-3 according to UNE-HD 603 and type XLPE according to IEC 60502-1. The standard identification according to HD 308 is:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/yellow

6 G or more Black numbered + Green/yellow.

Separaton sheath

PVC typeDMV-18 according to UNE-HD 603 and type ST2 according to IEC 60502-1.

Armour

Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.

Outer sheath

Flexible PVC outer sheath type DMV18 according to UNE-HD 603 and type ST2 according to IEC 60502-1. Black color.

LOW VOLTAGE 0,6/1kV

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Maximum service temperature: 90ºC.

UNE-EN 60332-1

Industrial use.

Eca

ENVIRONMENTAL PERFORMANCE

✔ Chemical & Oil resistance: Acceptable.
✔ UV Resistant: UNE 211605.
✔ Water resistance: AD7 immersion.

ELECTRICAL PERFORMANCE

✔ LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

✔ Flame non-propagation based on EN 60332-1 and IEC 60332-1
✔ Reaction to fire CPR: Eca, according to EN 50575.
✔ Reduced halogen emission. Chlorine <15%.

MECHANICAL PERFORMANCE

✔ Impact resistance: AG4 High severity.
✔ Minimum bending radius: x10 cable diameter.
✔ Rodent proof

THERMAL PERFORMANCE

✔ Maximum service temperature: 90ºC.
✔ Maximum short-circuit
temperature: 250ºC (max. 5 s).
✔ Minimum installation and handling temperature: 0ºC (on cable surface).
✔ Minimum service temperature: -40ºC (fixed and protected installations)

APPLICATIONS

✔ Industrial use.

APPROVALS

✔ BUREAU VERITAS
✔ CE
✔ RoHS

BASED ON

✔ IEC 60502-1 – UNE 21123-2

INSTALLATION CONDITIONS

✔ Buried.
✔ In conduit.
✔ Open Air.

CONSTRUCTION PRODUCT REGULATION

✔ Eca

International norm

✔ IEC 60332-1

OTHERS

✔ Meter by meter marking.

National norm / European:

✔ UNE-EN 60332-1

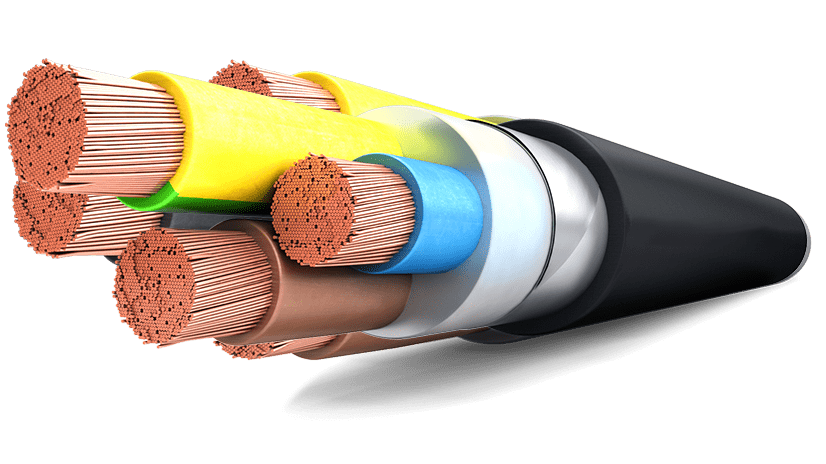

Technology

1. Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

2. Insulation

Cross-linked polyethylene (XLPE).

The standard identification of insulated conductors is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Yellow/green

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey+ Blue (reduced cross section)

4 G Brown + Black + Grey + Yellow/green

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Yellow/green

6 G or more Black numbered + Yellow/green.

3. Separation sheath

PVC typeDMV-18 according to UNE-HD 603 and type ST2 according to IEC 60502-1.

4. Armour

Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.

5. Outer sheath

Flexible PVC outer sheath typeDMV-18 according to UNE-HD 603 and type ST2 according to IEC 60502-1. Black color.
